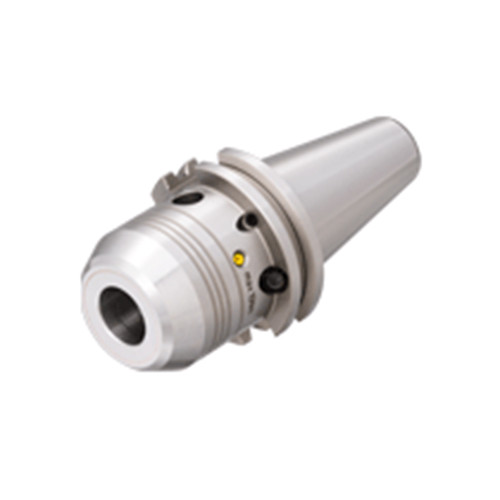

CAT40 HYDRO 1/2X3.031
Hydraulic chucks with coolant holes and Caterpillar form ADB tapered shanks.
Price: Log in For Price

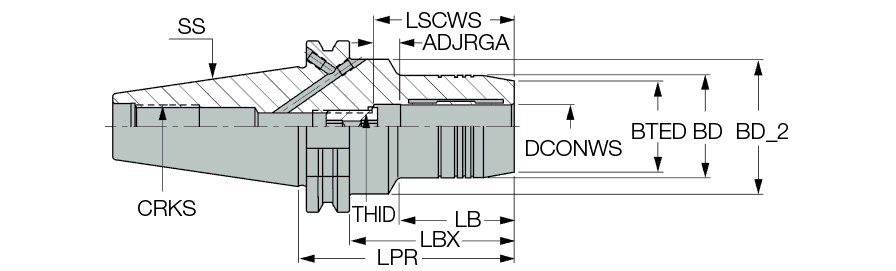

| Body Length (LB) | 1.653″ | Tool Type | DIN 69871 |
| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Measurement Type | Inch |
| Body Diameter (BD) | 1.259″ | Body Material | Steel |
| Protruding Length (LPR) | 3.031″ | Connection Code Machine Side (CCMS) | CAT |
| Shank Size (SS) | 40 | Unit | I |
Product Features
| Family Description | Hydraulic chucks with coolant holes and Caterpillar form ADB tapered shanks. | FamilyName | CAT-HYDRO |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. Note: Reduction sleeves are available for 3/4 and 1-1/4 bore diameters (order separately). The coolant passages in the B type flange are blocked withscrews which can be removed when required. Clamping wrench (wrench HYDRO HEX 4) and test bar to be ordered separately. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
2.6830
Name
Hydraulic Holders
FamilyName
CAT-HYDRO
BrandName
Iscar
