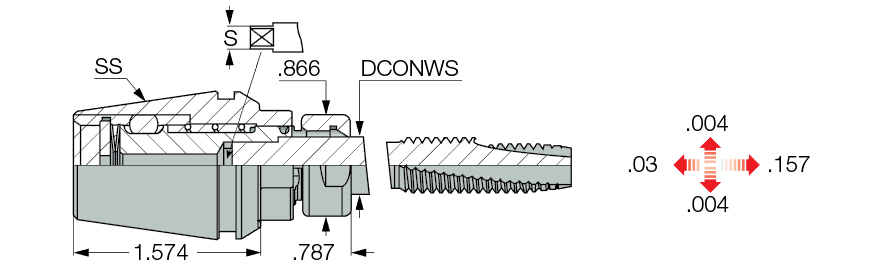

GTIN ER32 ANSI .323X.242
| Shank Size (SS) | ER32 | Connection Diameter Workpiece Side (DCONWS) | 0.323″ |
| Connection Diameter Machine Side (DCONMS) | 32″ | Body Material | Steel |
| Tool Type | Turn-Groove Tools | Unit | I |
| Measurement Type | Inch |
Product Features
| Family Description | ER collet tapping attachments, tension and compression ANSI type, CNC milling and turret lathe machines. A compact design with a misalignment compensating mechanism. | FamilyName | GTIN ER-ANSI (tapping) |
| Remarks | For adaptation Click on More Info. No coolant should be induced through the tapping collet, as it will cause malfunctioning of the mechanism. Compensates for machine feed and tap pitch variance. Floating mechanism compensates for misalignment between tap and workpiece. When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by .0787 for ER20 and by .118 for ER25/ER32 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4850
Name
Collet Chucks
FamilyName
GTIN ER-ANSI (tapping)
BrandName
Iscar
LocalField3
8466100175
