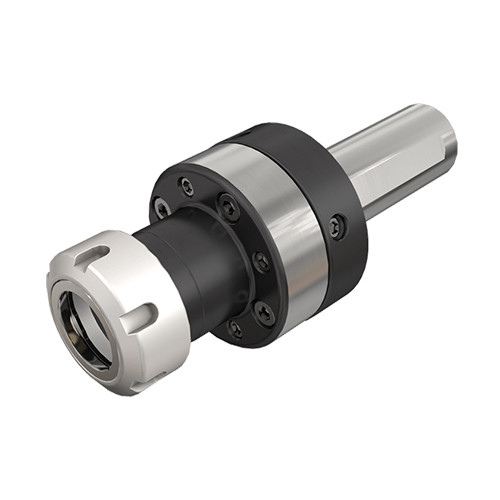

ADJ ST32 D70 ER32
FINEFIT DIN 6499 ER collet chucks with center alignment and cylindrical shanks with a clamping flat
Price: Log in For Price

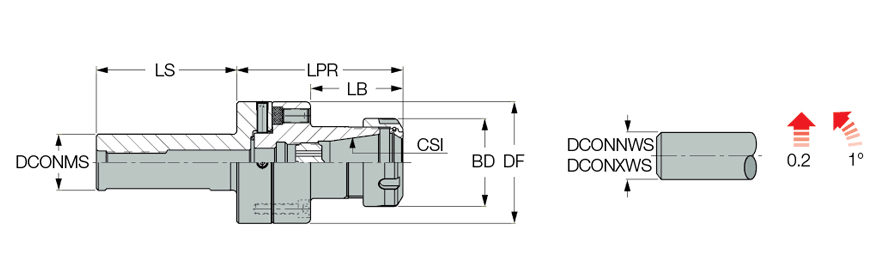

| Shank Size (SS) | 32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 94.5 mm | Body Material | Steel |
| Shank Length (LS) | 80 mm | Unit | M |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | FINEFIT DIN 6499 ER collet chucks with center alignment and cylindrical shanks with a clamping flat | FamilyName | ADJ ST-ER |

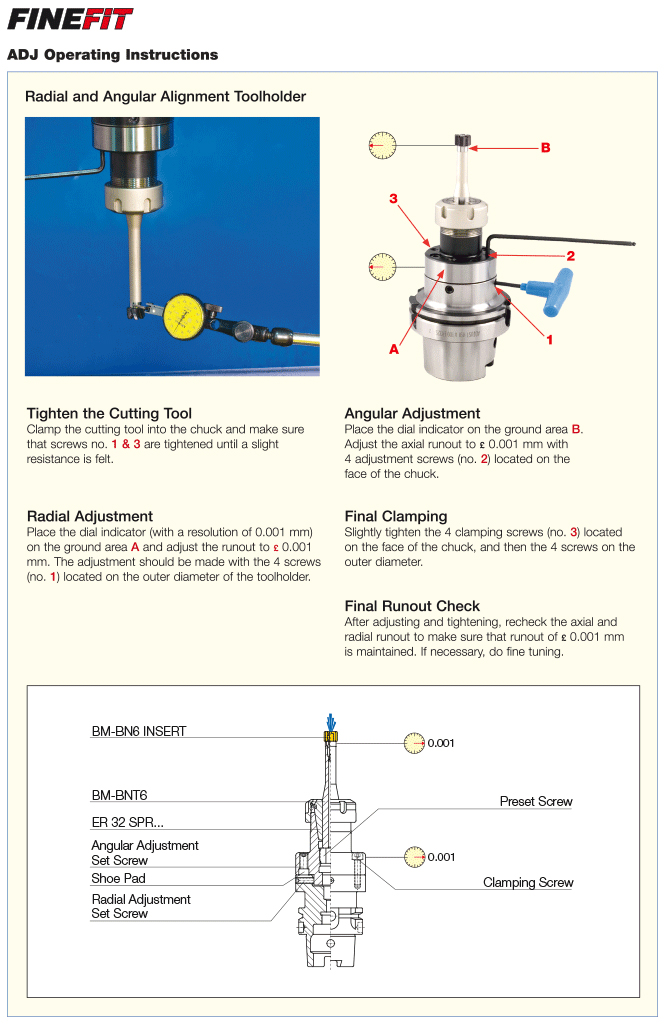

| Remarks | Radial adjustment 0.2 mm Angular adjustment 1° | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.0460
Name
Collet Chucks
FamilyName
ADJ ST-ER
BrandName
Iscar
