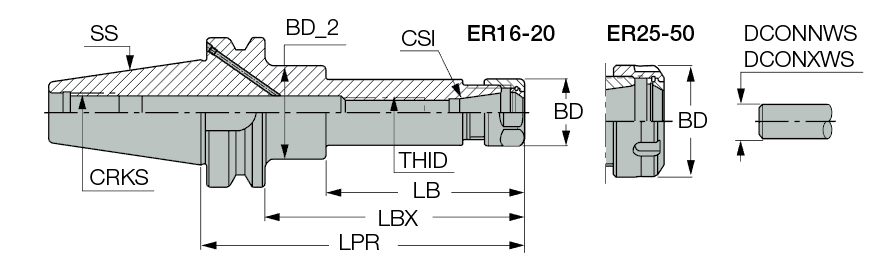

| Shank Size (SS) | 50 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Connection Size (CSI) | ER32 | Measurement Type | Inch |
| Body Diameter (BD) | 1.968″ | Body Material | Steel |
| Protruding Length (LPR) | 5.906″ | Connection Code Machine Side (CCMS) | BT |
| Tool Type | BT | Unit | I |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
Product Features

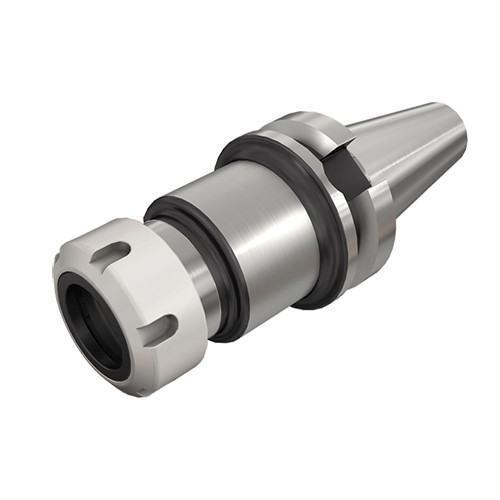

| Family Description | DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks. | FamilyName | BT-ER |
| Remarks | B is the designation for coolant through flange. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
10.8467
Name
Collet Chucks
FamilyName
BT-ER
BrandName
Iscar
