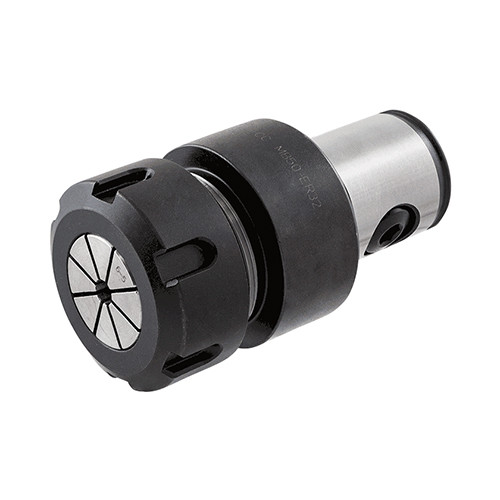

CC MB20 ER16M
DIN 6499 ER collet chuck with the MB modular boring connection system.
Price: Log in For Price

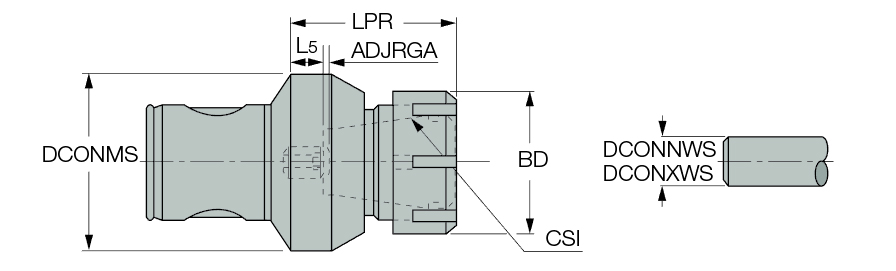

| Shank Size (SS) | MB20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Connection Size (CSI) | ER16 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Body Diameter (BD) | 0.866″ | Measurement Type | Inch |
| Protruding Length (LPR) | 1.26″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Unit | I |
| Tool Type | MB General Tools Holders |
Product Features
| Family Description | DIN 6499 ER collet chuck with the MB modular boring connection system. | FamilyName | CC MB-ER |
| COO | Italy | BrandName | Iscar |
Shipping Info
Weight per item
0.1676
Name
Collet Chucks
FamilyName
CC MB-ER
BrandName
Iscar
