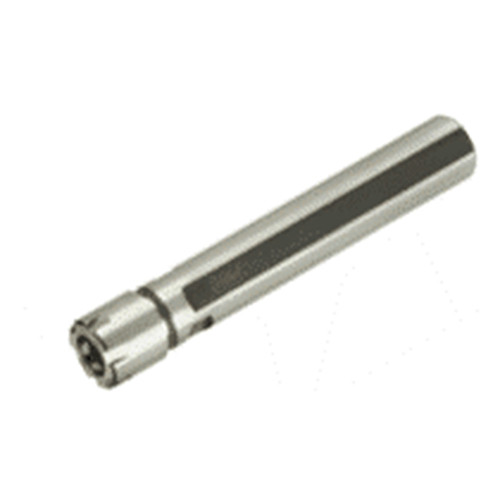

ST3/4 X2.500 ER16 MF
DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes.
Price: Log in For Price

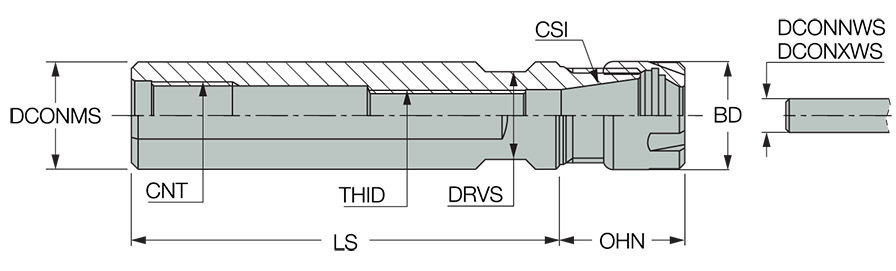

| Shank Size (SS) | .750 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022″ |
| Connection Size (CSI) | ER16 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.396″ |
| Body Diameter (BD) | 0.866″ | Measurement Type | Inch |
| Protruding Length (LPR) | 1″ | Drive Size (DRVS) | 0.63″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Material | Steel |
| Shank Length (LS) | 2-1/2″ | Unit | I |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes. | FamilyName | ST-ER-MF (mini flat) |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2888
Name
Collet Chucks
FamilyName
ST-ER-MF (mini flat)
BrandName
Iscar
