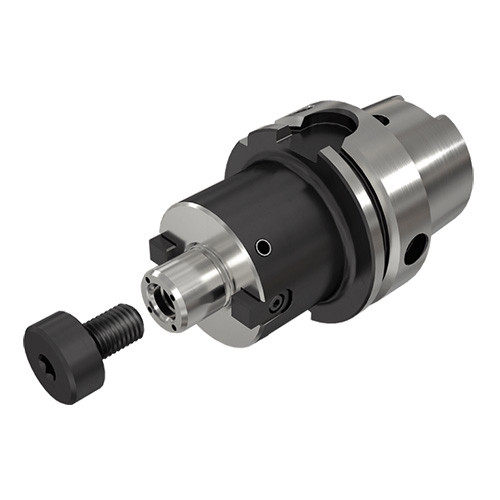

HSK A100 SEM1.0X6.00C

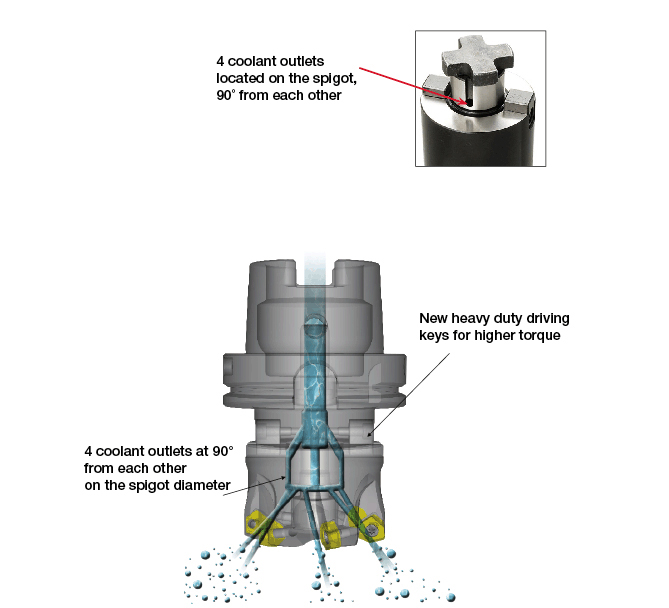

Shell mill holders with coolant holes and DIN69893 form A HSK tapered shanks. Symmetrical design, dynamically balanced for high RPM machining.
Price: Log in For Price

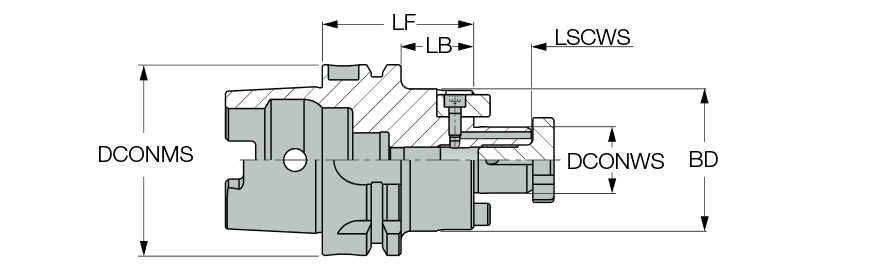

| Connection Diameter Machine Side (DCONMS) | 3.937″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 1″ | Clamping Length Workpiece Side (LSCWS) | 0.67″ |
| Shank Size (SS) | 100 | Measurement Type | Inch |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Body Diameter (BD) | 2.165″ | Unit | I |
Product Features
| Family Description | Shell mill holders with coolant holes and DIN69893 form A HSK tapered shanks. Symmetrical design, dynamically balanced for high RPM machining. | FamilyName | HSK A-SEM-C |
| COO | Italy | BrandName | Iscar |
Shipping Info
Weight per item
9.9340
Name
Shell Mill Holders
FamilyName
HSK A-SEM-C
BrandName
Iscar
