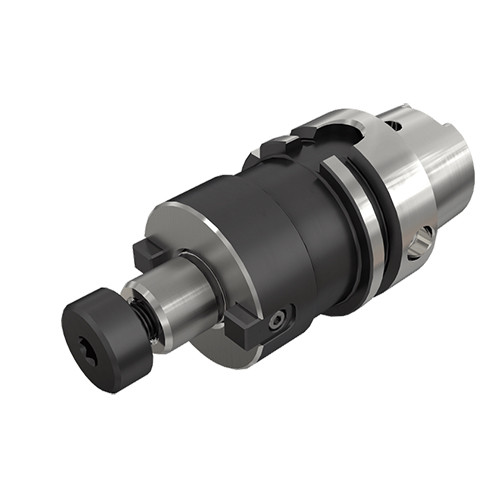

HSK A63 SEM1 1/2X2.375

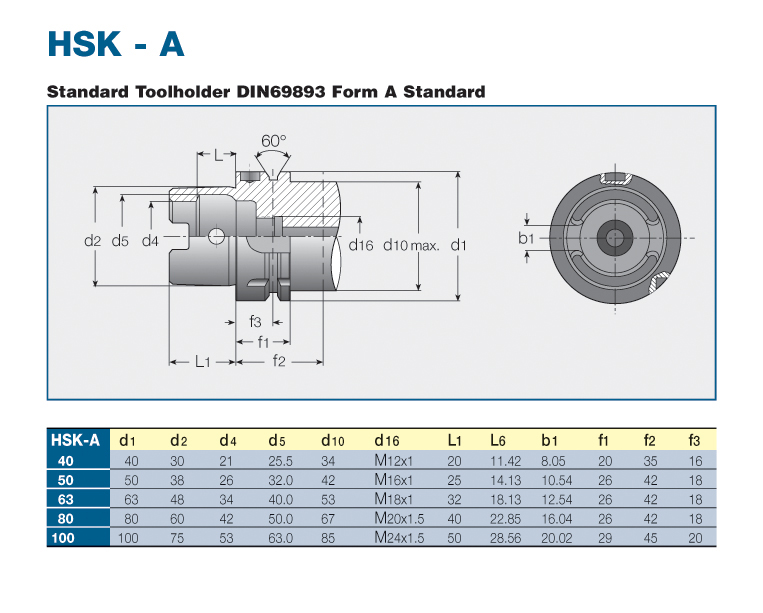

ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks.
Price: Log in For Price

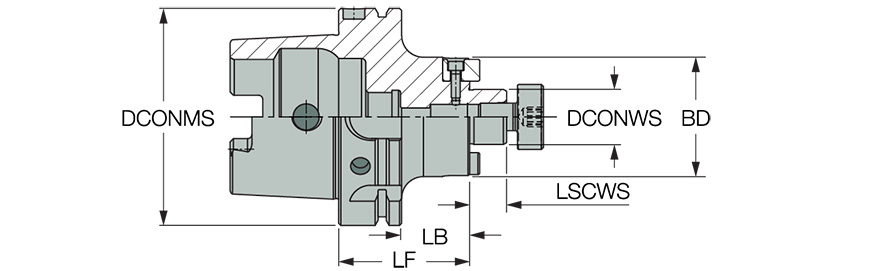

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 1-1/2″ | Measurement Type | Inch |
| Shank Size (SS) | 63 | Body Material | Steel |
| Functional Length (LF) | 2-3/8″ | Connection Code Machine Side (CCMS) | HSK |
| Body Diameter (BD) | 3.07″ | Unit | I |
| Clamping Length Workpiece Side (LSCWS) | 0.94″ |
Product Features
| Family Description | ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks. | FamilyName | HSK A-SEM |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
4.5922
Name
Shell Mill Holders
FamilyName
HSK A-SEM
BrandName
Iscar
