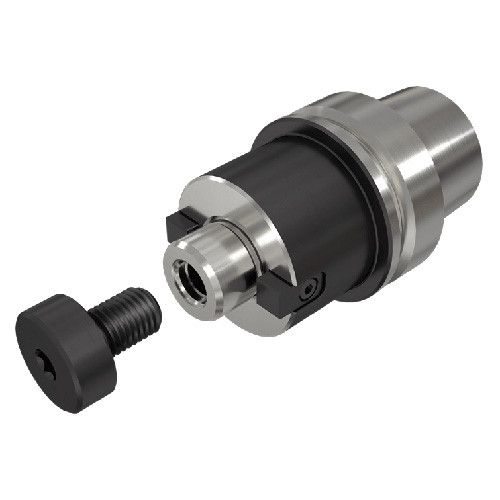

HSK E40 SEM 3/4X2.000

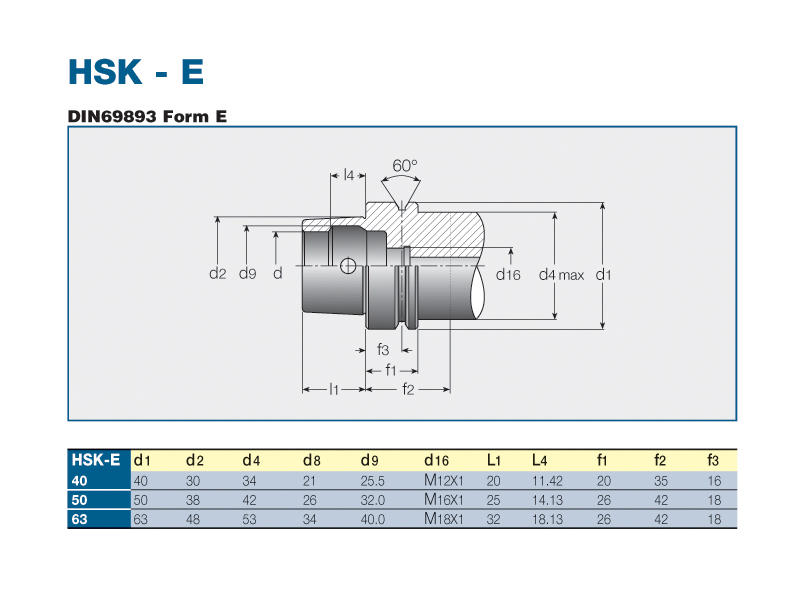

ISO 3937 shell mill holders with HSK E DIN69893 form E tapered shanks.
Price: Log in For Price
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Clamping Length Workpiece Side (LSCWS) | 0.669″ |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Tool Type | HSK |
| Shank Size (SS) | 40 | Measurement Type | Inch |
| Functional Length (LF) | 2″ | Body Material | Steel |
| Body Diameter (BD) | 1.771″ | Connection Code Machine Side (CCMS) | HSK |
| Coolant Supply Property (CSP) | External | Unit | I |
Product Features
| Family Description | ISO 3937 shell mill holders with HSK E DIN69893 form E tapered shanks. | FamilyName | HSK E-SEM |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.3823
Name
Shell Mill Holders
FamilyName
HSK E-SEM
BrandName
Iscar
