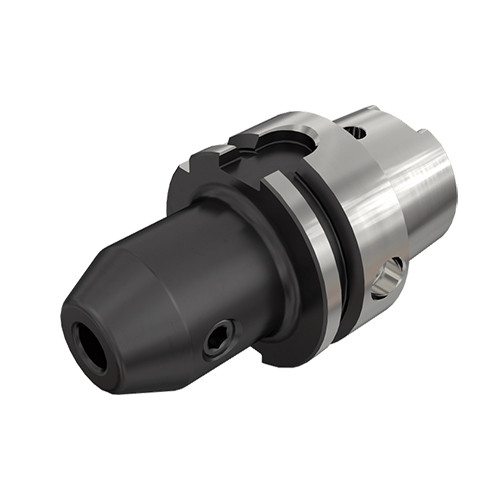

HSK A63 EM1/2X3.125
DIN6359 side clamp holders for Weldon shanks with HSK DIN69893 form A tapered shanks.
Price: Log in For Price

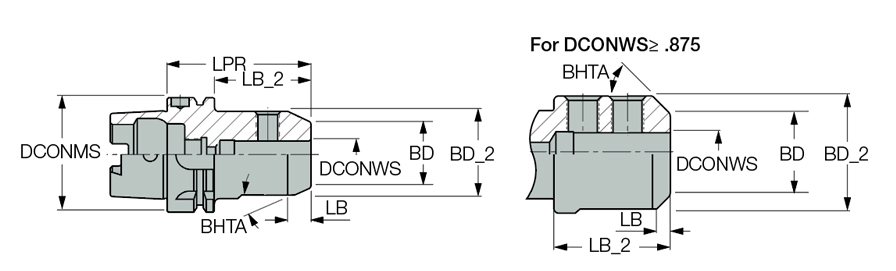

| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Shank Size (SS) | 63 |
| Body Diameter (BD) | 1.181″ | Tool Type | HSK |
| Protruding Length (LPR) | 3-1/8″ | Body Material | Steel |
| Overall Length (OAL) | 4.385″ | Connection Code Machine Side (CCMS) | HSK |
| Measurement Type | Inch | Unit | I |
Product Features
| Family Description | DIN6359 side clamp holders for Weldon shanks with HSK DIN69893 form A tapered shanks. | FamilyName | HSK A-EM (Weldon) |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, see More info. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
2.2289
Name
End Mill Holders
FamilyName
HSK A-EM (Weldon)
BrandName
Iscar
