ADJ CAT50 D2.756

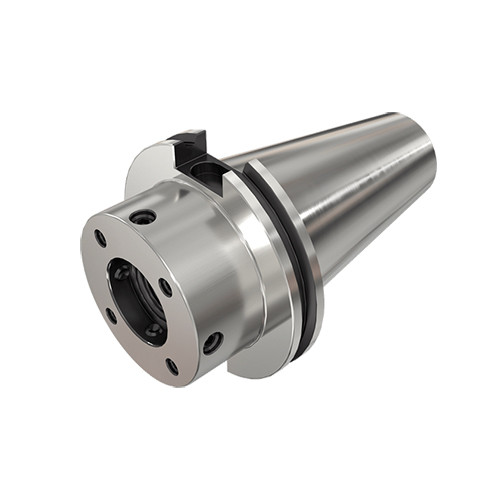

Center alignment shank and base with a caterpillar AD/B tapered shank. (Used for specially tailored tool holders).
Price: Log in For Price

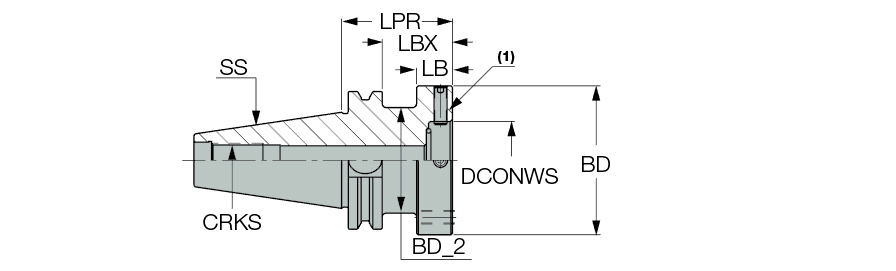

| Shank Size (SS) | 50 | Tool Type | Caterpillar |
| Protruding Length (LPR) | 1.969″ | Measurement Type | Inch |
| Body Length (LB) | 1.219″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50″ | Connection Code Machine Side (CCMS) | CAT |
| Connection Retention Knob Thread Size (CRKS) | 1-8 | Unit | I |
Product Features
| Family Description | Center alignment shank and base with a caterpillar AD/B tapered shank. (Used for specially tailored tool holders). | FamilyName | ADJ CAT |
| Remarks | (1) Use 4 mm hex key for screw adjustment Add B to the designation for coolant through flange option | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
7.6566
Name
Drill Chucks & Adapters
FamilyName
ADJ CAT
BrandName
Iscar
