SCB 010.500.020-41 IC908

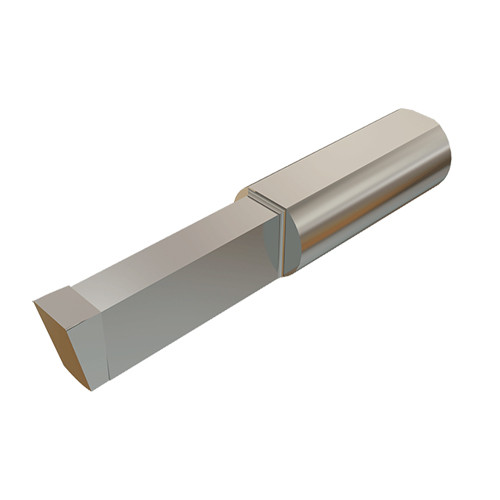

DIN6885 inserts for light fit (JS9) keyway broaching on lathe and milling machines.
Price: Log in For Price

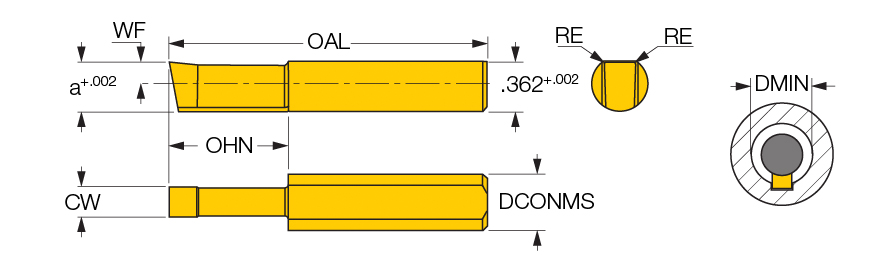

| Tool Type | Solid, Turning & Grooving | Overall Length (OAL) | 2.598″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Corner Radius (RE) | 0.0079″ |
| Cutting Depth Maximum (CDX) | 0.1969″ | Connection Diameter Machine Side (DCONMS) | 0.394″ |
| Cutting Width (CW) | 0.197″ | Functional Width (WF) | 0.157″ |
| Cutting Edge Material | Carbide | Minimum Bore Diameter (DMIN) | 0.394″ |
| Grade | IC908 | Application | | Ext. Broaching | Int. Broaching | |
| Coating | TiAlN | Body Material | Carbide |
| Measurement Type | Inch | Unit | I |
Product Features
| Family Description | DIN6885 inserts for light fit (JS9) keyway broaching on lathe and milling machines. | COO | Israel |
| Remarks | Typical conditions: Vc = 160-315 inch/min, ap = .0008-.0031 inch |
Shipping Info
Weight per item
0.1235
