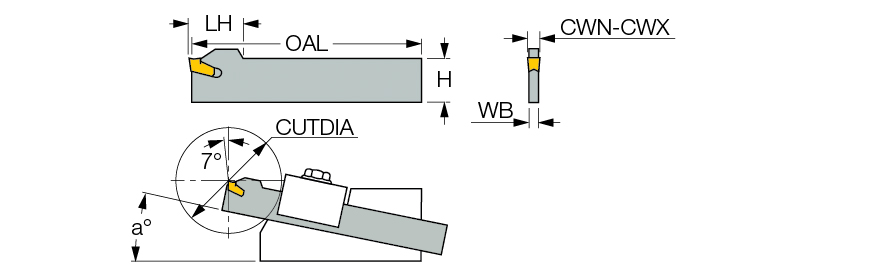

| Shank Height (H) | 0.673″ | Body Material | Steel |
| Body Width (WB) | 0.126″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 0.139″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.362″ |
| Cutting Width Maximum (CWX) | 0.178″ | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 4.331″ | Measurement Type | Inch |
| Head Length (LH) | 0.787″ | Tool Assembly Length (LTA) | 1.181″ |
| Application | | Ext. Grooving | Parting | | Unit | I |
Product Features

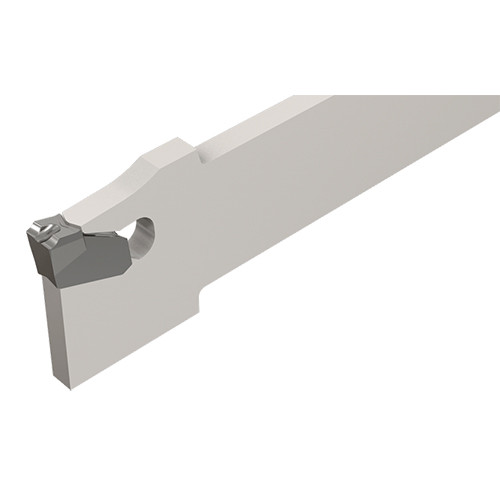

| Family Description | Replacement SELF-GRIP blades for HSS and brazed parting tools. | FamilyName | SGFS |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1543
Name
Parting Off Indexable Holders
FamilyName
SGFS
BrandName
Iscar
