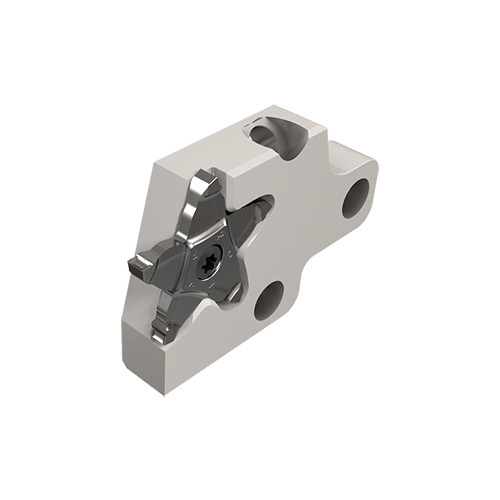

PCADL 34N-RE
Reinforced adapters for PENTA 34 standard inserts in .060 to .157″ widths. Should be used mainly for the wider inserts and for heavy load or interrupted cut applications.
Price: Log in For Price

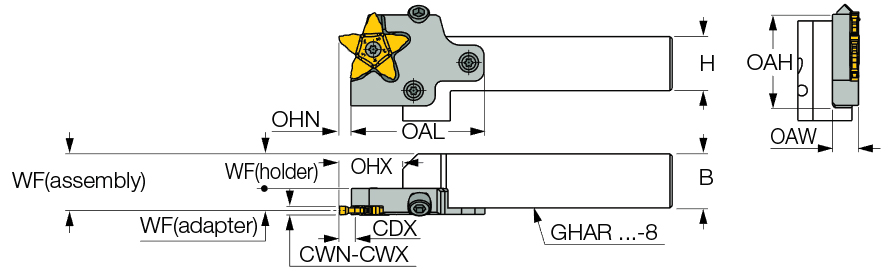

| Cutting Width Minimum (CWN) | 0.059″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.157″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 2.421″ | Measurement Type | Inch |
| Overall Height (OAH) | 1.654″ | Tool Assembly Length (LTA) | 0″ |
| Application | | Ext. Grooving | Parting | | Unit | I |
| Body Material | Steel |
Product Features
| Family Description | Reinforced adapters for PENTA 34 standard inserts in .060 to .157″ widths. Should be used mainly for the wider inserts and for heavy load or interrupted cut applications. | FamilyName | PCADR/L 34N-RE |
| Remarks | CDX and CUTDIA according to insert limitation H, B, and WF(holder) according to holder being used | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4299
Name
Parting Off Indexable Holders
FamilyName
PCADR/L 34N-RE
BrandName
Iscar
