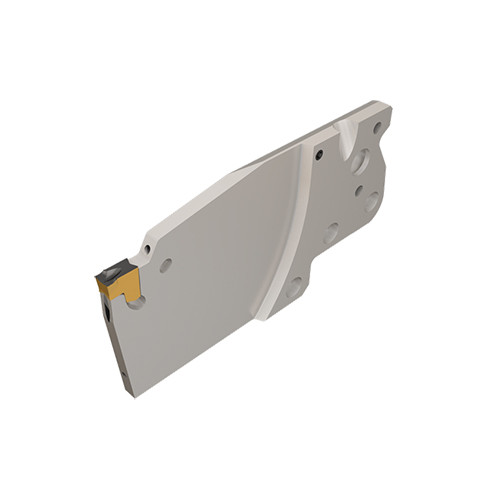

TAGPAD-XL 2L-D65-JHP
Extra long parting and grooving adapters with channels for high-pressure coolant carrying TANG-GRIP inserts
Price: Log in For Price

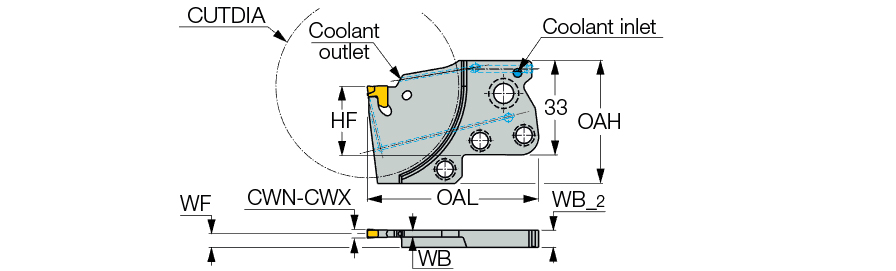

| Body Width (WB) | 0.063″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 0.071″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.559″ |
| Cutting Width Maximum (CWX) | 0.094″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 2.362″ | Measurement Type | Inch |
| Overall Height (OAH) | 1.693″ | Body Width_2 (WB_2) | 0.236″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 2.69″ |
| Body Material | Steel | Unit | I |
Product Features
| Family Description | Extra long parting and grooving adapters with channels for high-pressure coolant carrying TANG-GRIP inserts | FamilyName | TAGPAD-XL-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1433
Name
Parting Off Indexable Holders
FamilyName
TAGPAD-XL-JHP
BrandName
Iscar
