PCHL 25-34-JHP-MC

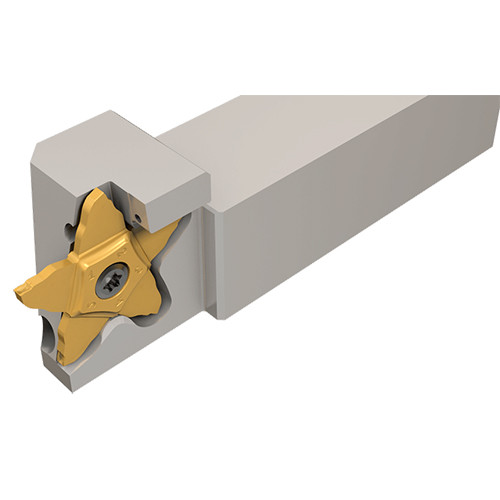

Grooving, parting and recessing tools carrying PENTA inserts with bottom inlets for high-pressure coolant.
Price: Log in For Price

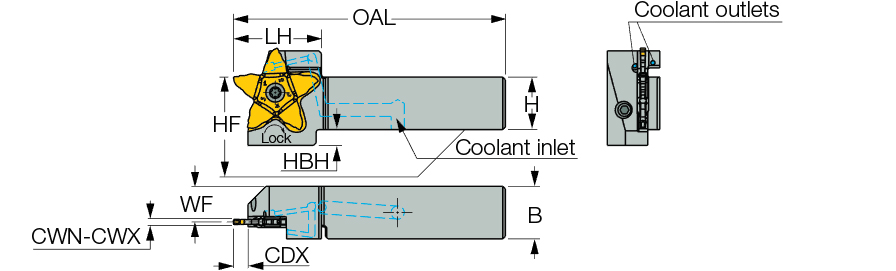

| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 1.5 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 118.5 mm | Functional Width (WF) | 18.55 mm |
| Head Length (LH) | 33.5 mm | Tool Assembly Length (LTA) | 46 mm |
| Cutting Depth Maximum (CDX) | 10 mm | Unit | M |
Product Features
| Family Description | Grooving, parting and recessing tools carrying PENTA inserts with bottom inlets for high-pressure coolant. | FamilyName | PCHR/L-34-JHP-MC |
| Remarks | For more details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.5610
Name
Parting Off Indexable Holders
FamilyName
PCHR/L-34-JHP-MC
BrandName
Iscar
