TGTBQ 25L-D82-ECD-JHP
Tool blocks for square TANG-F-GRIP (TGAQ-ECD) parting and grooving adapters for high-pressure coolant.
Price: Log in For Price

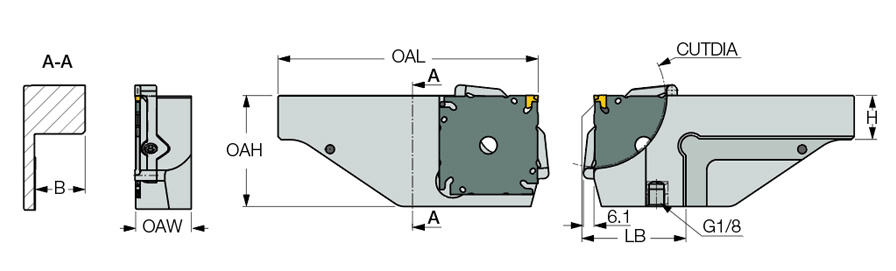

| Shank Height (H) | 25 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 82 mm |
| Shank Width (B) | 25.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Tool Assembly Length (LTA) | 15.3 mm |
| Overall Height (OAH) | 64 mm | Unit | M |
| Body Material | Steel |
Product Features
| Family Description | Tool blocks for square TANG-F-GRIP (TGAQ-ECD) parting and grooving adapters for high-pressure coolant. | FamilyName | TGTBQ-ECD-JHP (JET-CROWN) |

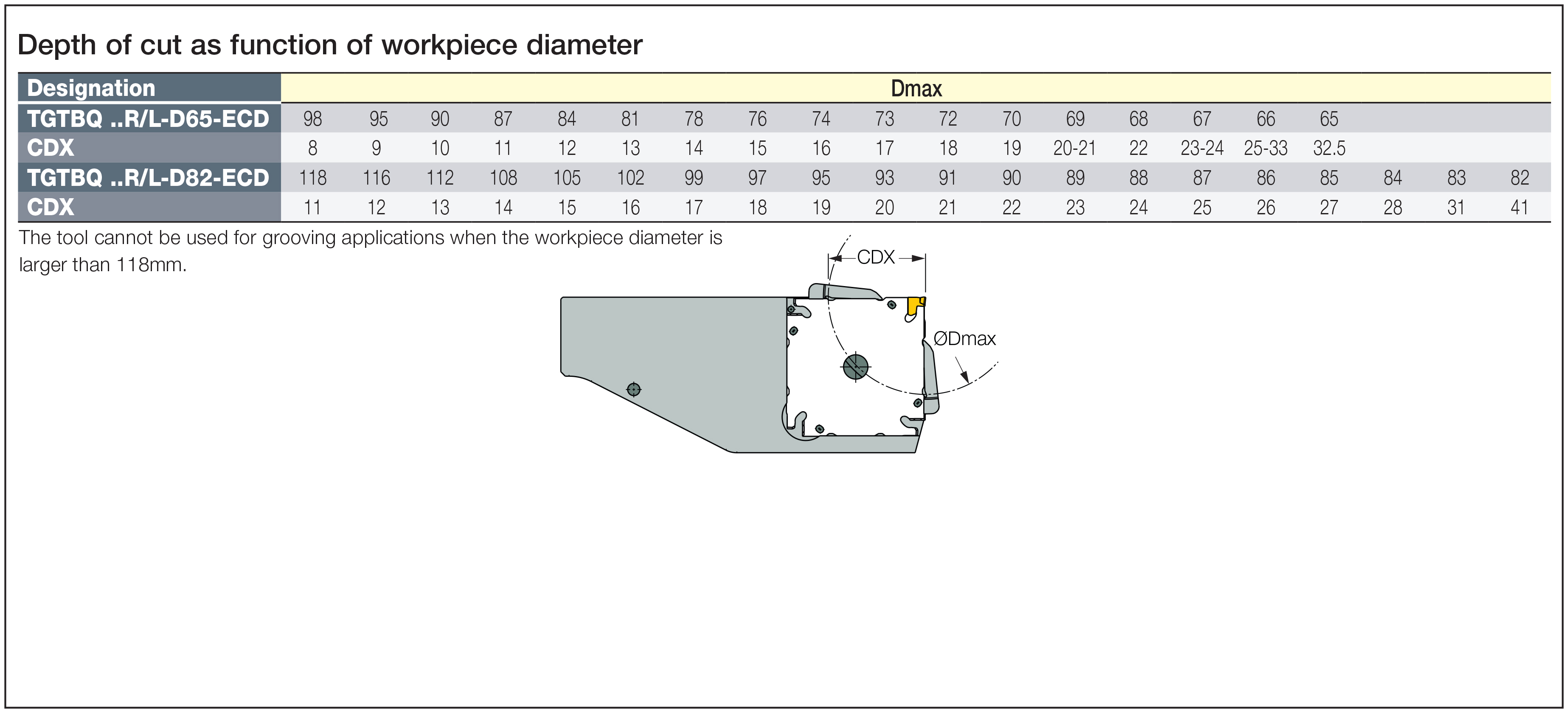

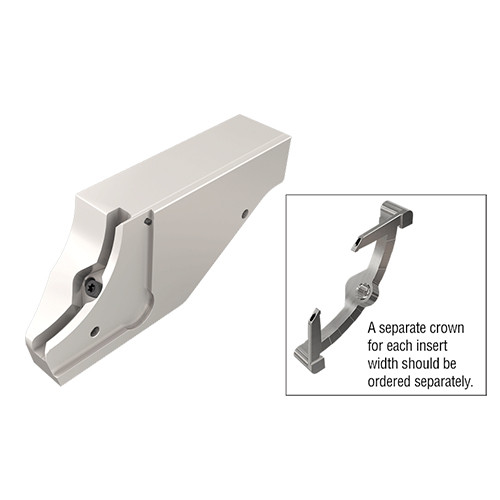

| Remarks | The tool cannot be used for grooving applications when the workpiece diameter is larger than 118mm A separate crown for each insert width should be ordered separately | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.2330
Name
Parting Off Indexable Holders
FamilyName
TGTBQ-ECD-JHP (JET-CROWN)
BrandName
Iscar
