SGFFA 45-R-4

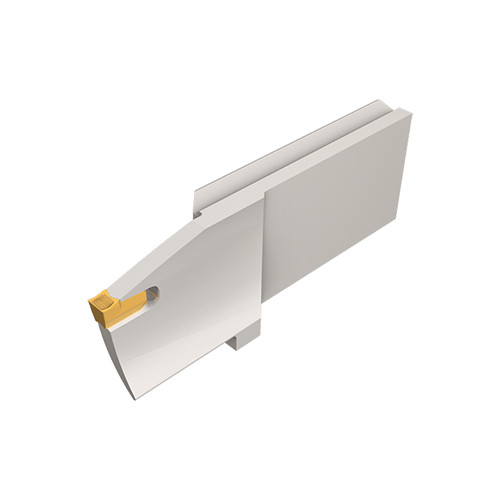

SELF-GRIP reinforced face grooving blades, used on standard tool blocks.
Price: Log in For Price

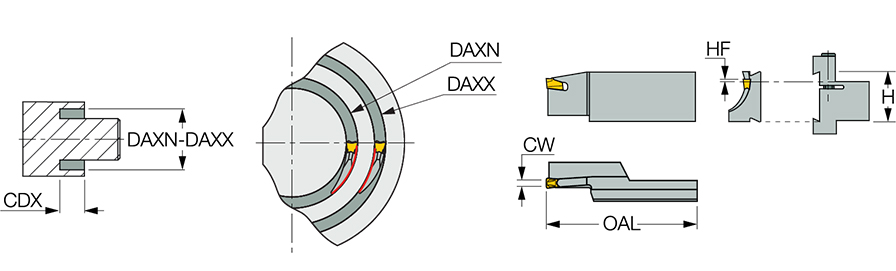

| Shank Height (H) | 1.26″ | Overall Length (OAL) | 3.583″ |
| Cutting Depth Maximum (CDX) | 0.984″ | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Width (CW) | 0.157″ | Tool Type | Face Grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.28″ | Measurement Type | Inch |
| Axial Groove Outside Diameter Minimum (DAXN) | 1.73″ | Unit | I |
Product Features
| Family Description | SELF-GRIP reinforced face grooving blades, used on standard tool blocks. | FamilyName | SGFFA |
| Remarks | Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated H dimension links blades and blocks | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4586
Name
Face Groove/Turn Indexable Holders
FamilyName
SGFFA
BrandName
Iscar
