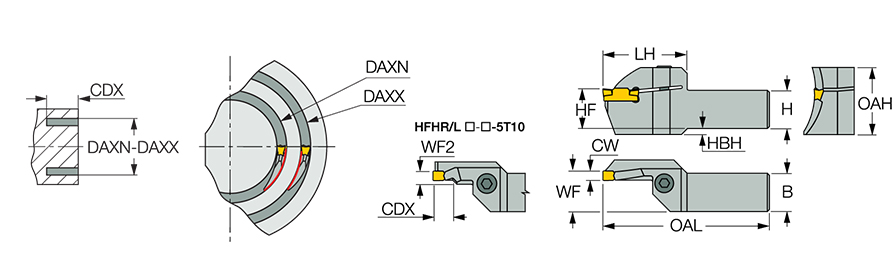

| Shank Width (B) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Shank Height (H) | 25 mm | Head Length (LH) | 51 mm |
| Cutting Depth Maximum (CDX) | 32 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width (CW) | 5 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 26 mm |
| Axial Groove Outside Diameter Maximum (DAXX) | 130 mm | Measurement Type | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 95 mm | Unit | M |
| Overall Length (OAL) | 150 mm |
Product Features
| Family Description | Integral Toolholders for External Facing | FamilyName | HFHR/L-5T |
| Remarks | For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6890
Name
Face Groove/Turn Indexable Holders
FamilyName
HFHR/L-5T
BrandName
Iscar
Related Documentation

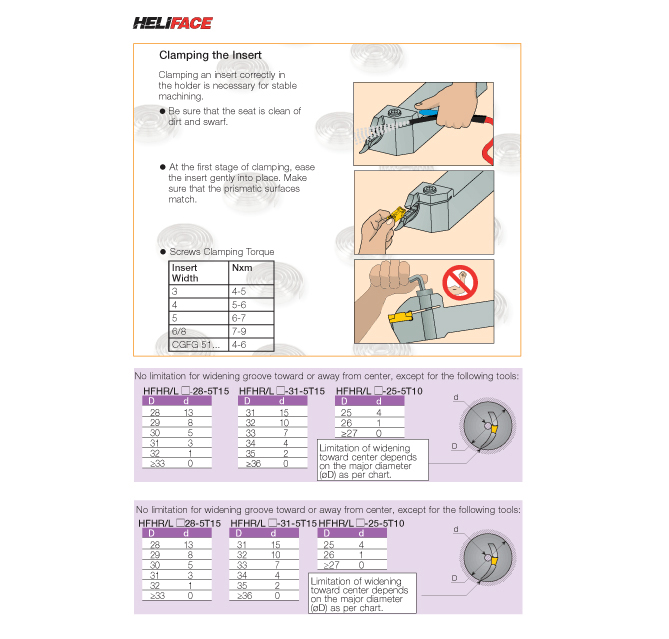

No limitation for widening groove outward/toward center, except for the tools above. The inserts DGN 5003 and GRIP 5005Y can be used with right-hand toolholder only.
