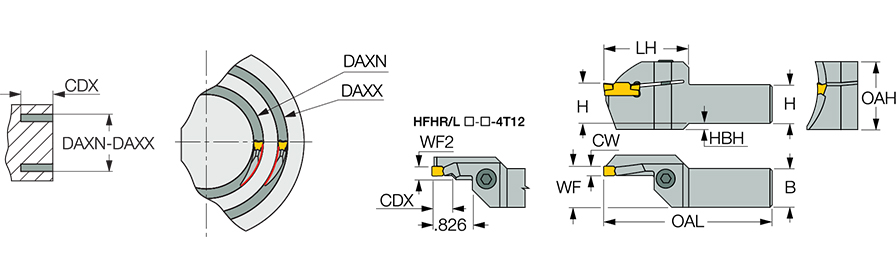

| Shank Width (B) | 1″ | Overall Length (OAL) | 6″ |
| Shank Height (H) | 1″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 0.98″ | Head Length (LH) | 1.73″ |
| Cutting Width (CW) | 0.157″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Maximum (CWX) | 0″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0″ | Functional Width (WF) | 1.02″ |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.95″ | Unit | I |
| Axial Groove Outside Diameter Minimum (DAXN) | 2.36″ |
Product Features
| Family Description | Integral toolholders for external facing | FamilyName | HFHR/L-4T |
| Remarks | For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.6424
Name

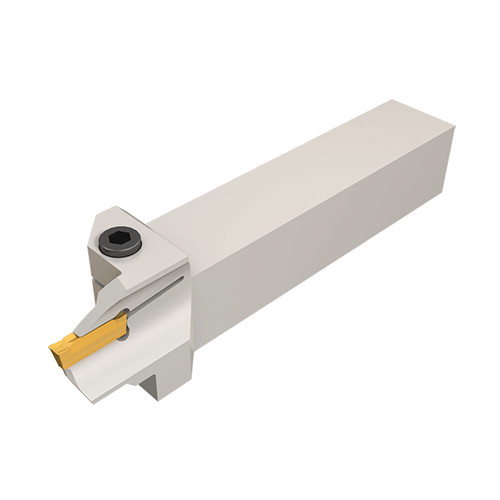

Face Groove/Turn Indexable Holders
FamilyName
HFHR/L-4T
BrandName
Iscar
Related Documentation

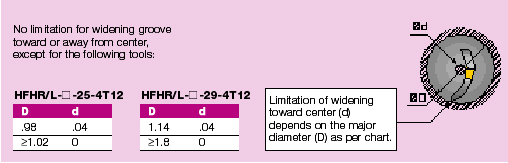

No limitation for widening groove outward/toward center, except for the tools above. The inserts DGN 4003 and GRIP 4004Y can be used with right-hand toolholder only.
