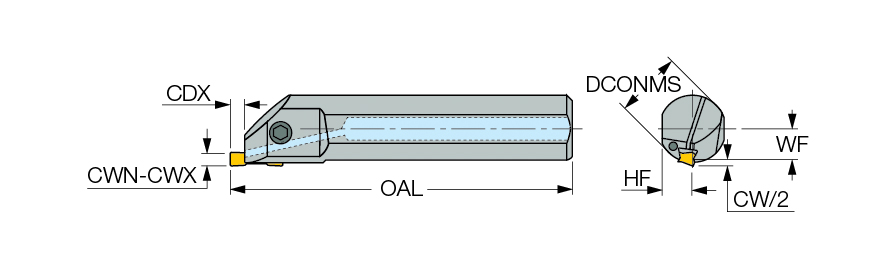

| Cutting Depth Maximum (CDX) | 0.197″ | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 0.157″ | Tool Type | Indexable Turn & Groov Tools |
| Cutting Width Maximum (CWX) | 0.236″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.118″ | Functional Width (WF) | 0.45″ |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Overall Length (OAL) | 8″ | Unit | I |
| Connection Diameter Machine Side (DCONMS) | 1″ |
Product Features

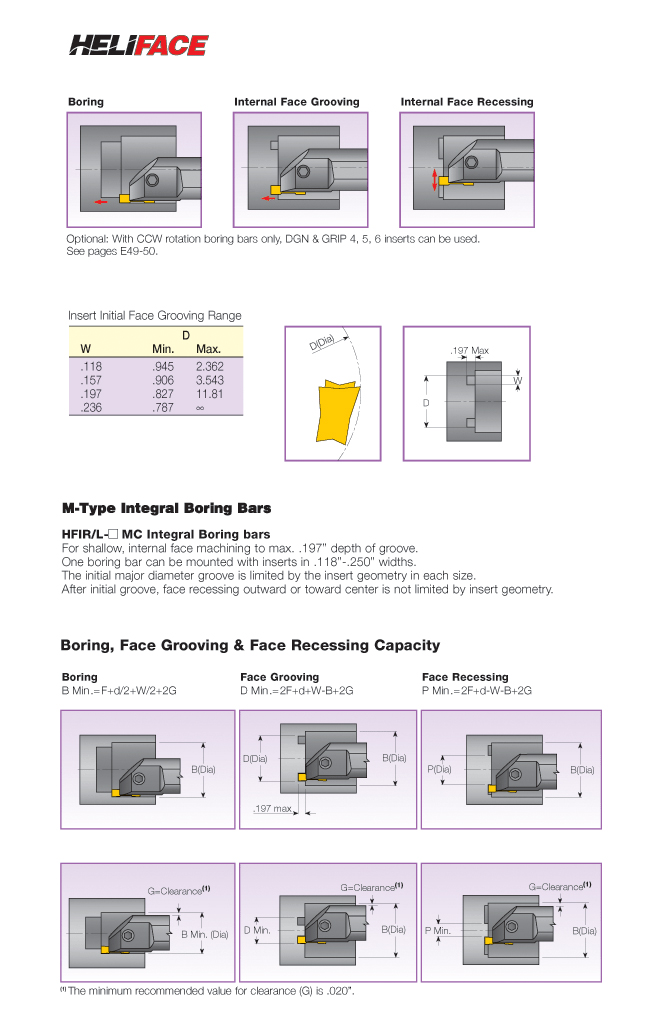

| Family Description | Boring bars for internal grooving and turning. Dmin .787″. | FamilyName | HFIR/L-MC |
| Remarks | For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.4154
Name
Face Groove/Turn Indexable Holders
FamilyName
HFIR/L-MC
BrandName
Iscar
