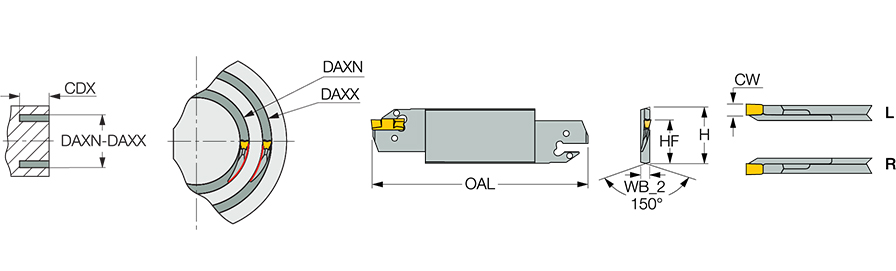

| Shank Height (H) | 1.26″ | Axial Groove Outside Diameter Minimum (DAXN) | 1.89″ |
| Cutting Depth Maximum (CDX) | 0.984″ | Overall Length (OAL) | 5.906″ |
| Cutting Width (CW) | 0.157″ | Application | | Face Grooving | Face Grooving & Turning | |
| Cutting Width Maximum (CWX) | 0.189″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 0.157″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.36″ | Unit | I |
Product Features

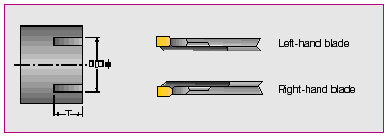

| Family Description | Blades for face machining Dmin 1.89″. | FamilyName | HFFR/L-T |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3329
Name

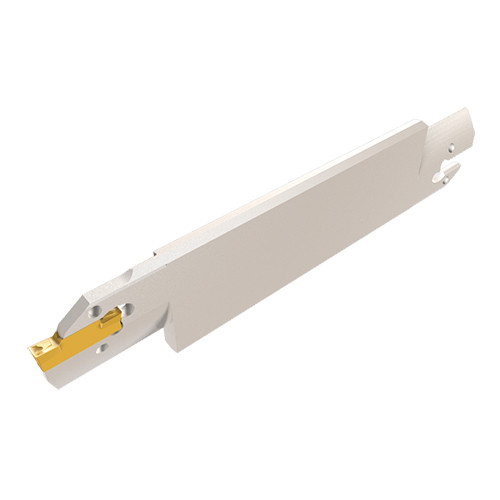

Face Groove/Turn Indexable Holders
FamilyName
HFFR/L-T
BrandName
Iscar
