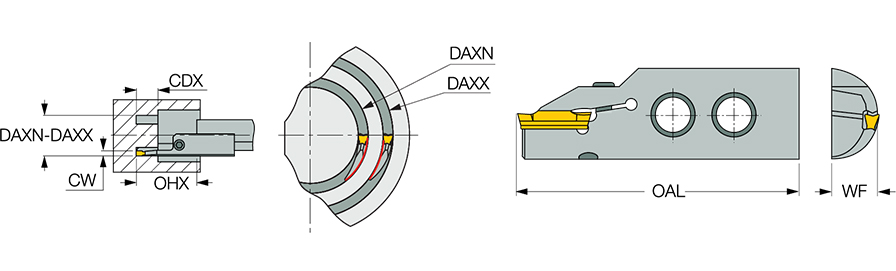

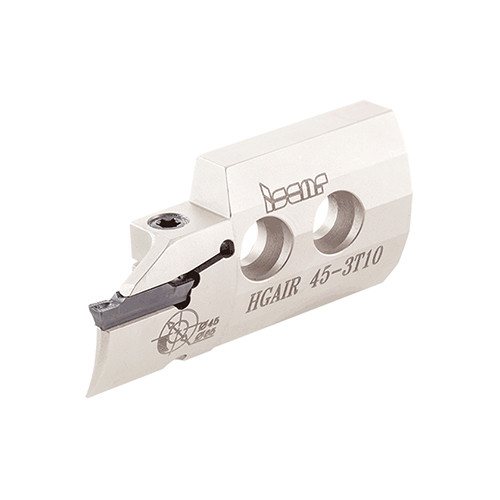

HGAIR 45-3T10
| Cutting Depth Maximum (CDX) | 0.394″ | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 0.118″ | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.56″ | Functional Width (WF) | 0.406″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 1.772″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.205″ | Unit | I |
Product Features
| Family Description | Adapters for internal face grooving and turning. Dmin .472″. | FamilyName | HGAIR/L-3-ISC2500719 -I |

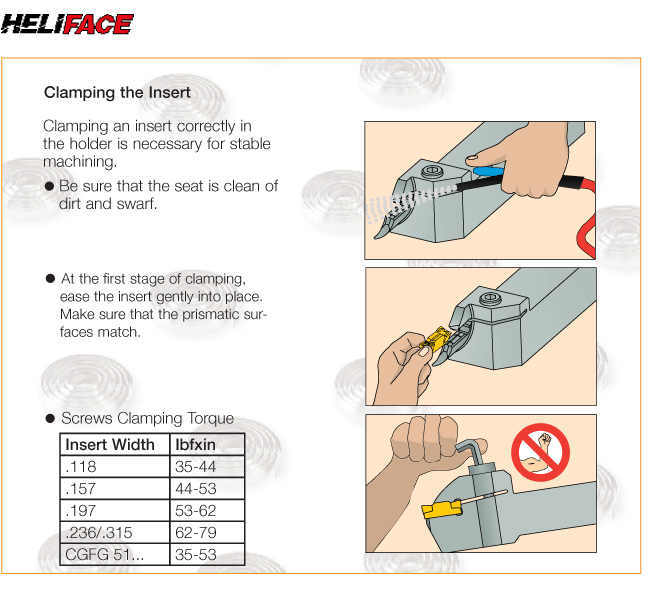

| Remarks | HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3.. inserts with left-hand adapters. For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFAIR For inserts clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.176
Name
Face Groove/Turn Indexable Holders
FamilyName
HGAIR/L-3-ISC2500719 -I
BrandName
Iscar
