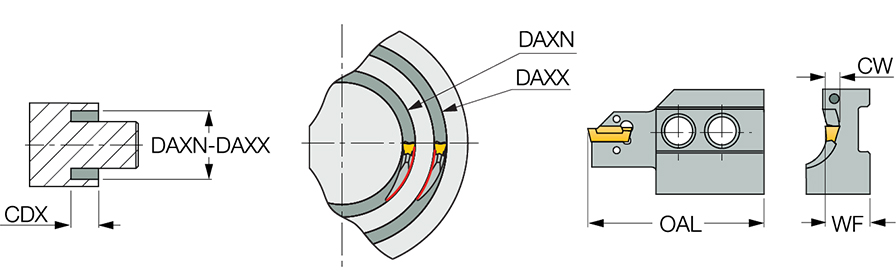

| Cutting Depth Maximum (CDX) | 1.26″ | Overall Length (OAL) | 2.874″ |
| Cutting Width (CW) | 0.236″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width Maximum (CWX) | 0″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 0″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 0.484″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 15-3/4″ | Measurement Type | Inch |
| Axial Groove Outside Diameter Minimum (DAXN) | 7.09″ | Unit | I |
Product Features
| Family Description | Adapters for external facing along shafts Dmin 2.76″. | FamilyName | HFAER/L-5T, 6T |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3527
Name

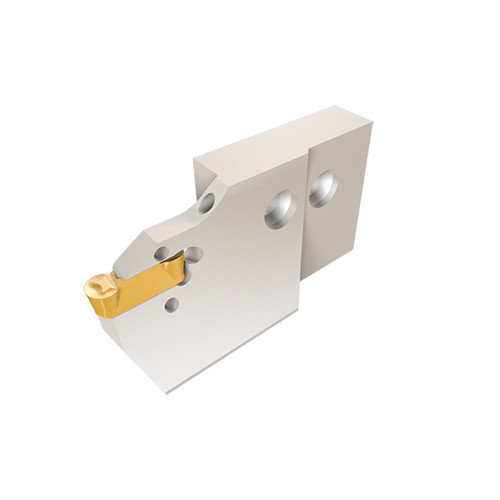

Face Groove/Turn Indexable Holders
FamilyName
HFAER/L-5T, 6T
BrandName
Iscar
