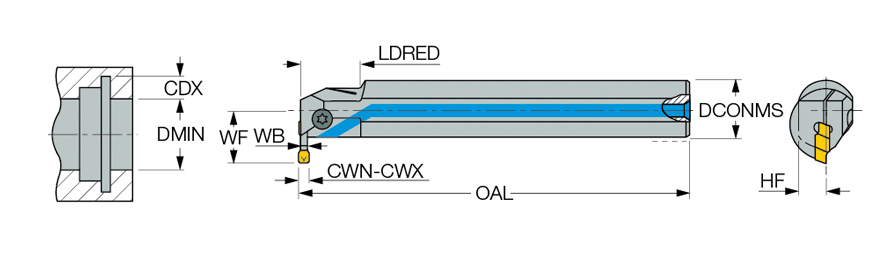

| Cutting Width Minimum (CWN) | 0.157″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Width Maximum (CWX) | 0.208″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 0.393″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1-1/4″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.89″ | Measurement Type | Inch |
| Head Length (LH) | 1″ | Unit | I |
| Overall Length (OAL) | 7″ |
Product Features

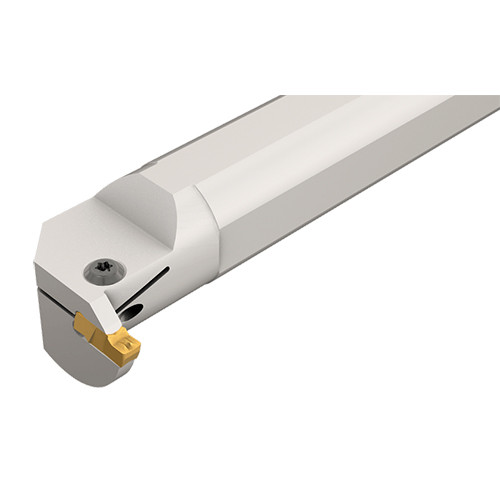

| Family Description | Grooving and turning boring bars with coolant holes. | FamilyName | GHIR/L-C (W=.157-.252) |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.2853
Name
Groove/Turn Indexable Holders
FamilyName
GHIR/L-C (W=.157-.252)
BrandName
Iscar
Related Documentation
Single-ended inserts GMP for minimum bore diameter 12.5 mm, and double-ended GIPI for minimum bore diameter 20 mm. Available also with internal coolant for improved chip flow and tool life.
