MG 12.7-08C16
Internal grooving turning and threading bars, Dmin .31″. CHAMGROOVE - part of the CHAMELEON multifunction system.
Price: Log in For Price

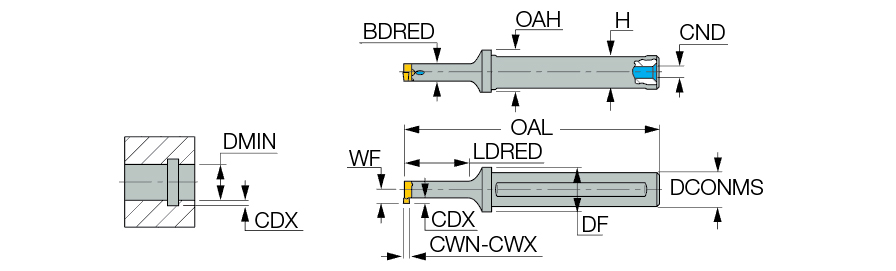

| Cutting Width Minimum (CWN) | 0.02″ | Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Width Maximum (CWX) | 0.118″ | Application | | Int. Back Boring and Profiling | Int. Boring and Profiling | Int. Groove & Turn | Int. Grooving | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 0.059″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.315″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.19″ | Measurement Type | Inch |
| Overall Length (OAL) | 3.7″ | Unit | I |
Product Features
| Family Description | Internal grooving turning and threading bars, Dmin .31″. CHAMGROOVE - part of the CHAMELEON multifunction system. | FamilyName | MG |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2072
Name
Groove/Turn Indexable Holders
FamilyName
MG
BrandName
Iscar
Related Documentation
Single-ended inserts GMP for minimum bore diameter 12.5 mm, and double-ended GIPI for minimum bore diameter 20 mm. Available also with internal coolant for improved chip flow and tool life.
