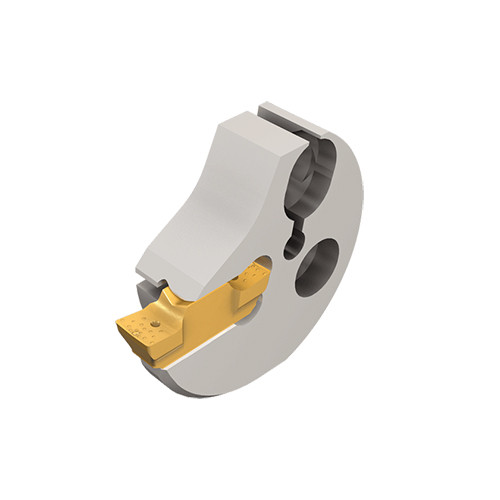

GEAIL 20-4

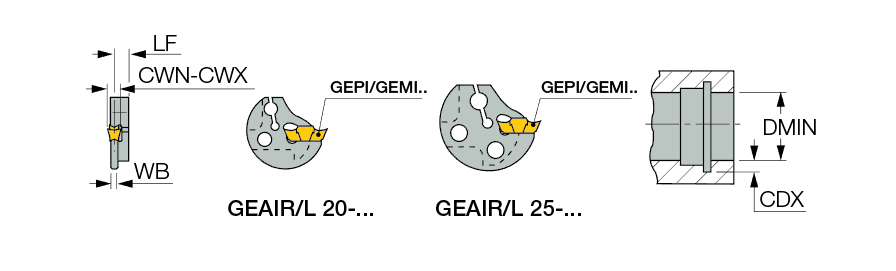

| Cutting Width Minimum (CWN) | 0.118″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Width Maximum (CWX) | 0.157″ | Body Material | Steel |
| Cutting Depth Maximum (CDX) | 0.118″ | Tool Type | Indexable Turn & Groov Tools |
| Body Width (WB) | 0.098″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.787″ | Unit | I |
| Functional Width (WF) | 0.152″ |
Product Features
| Family Description | Internal grooving and turning adapters for GEMI and GEPI inserts. | FamilyName | GEAIR/L |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0265
Name
Groove/Turn Indexable Holders
FamilyName
GEAIR/L
BrandName
Iscar
