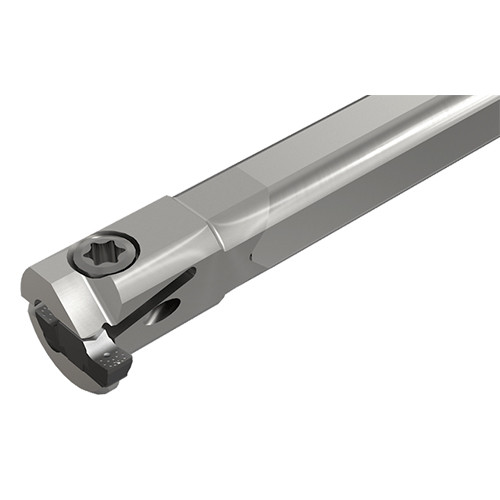

GEHIR 15.9SC-14-3
Internal machining of carbide bars with coolant holes using GEMI and GEPI inserts in widths larger than .075″ .
Price: Log in For Price

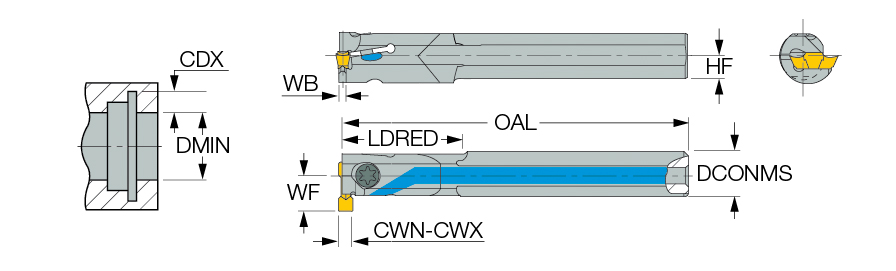

| Cutting Width Minimum (CWN) | 0.095″ | Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Cutting Width Maximum (CWX) | 0.126″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 0.102″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.551″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.43″ | Measurement Type | Inch |
| Head Length (LH) | 2-1/2″ | Unit | I |
| Overall Length (OAL) | 6″ |
Product Features
| Family Description | Internal machining of carbide bars with coolant holes using GEMI and GEPI inserts in widths larger than .075″ . | FamilyName | GEHIR/L-SC |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.6768
Name
Groove/Turn Indexable Holders
FamilyName
GEHIR/L-SC
BrandName
Iscar
