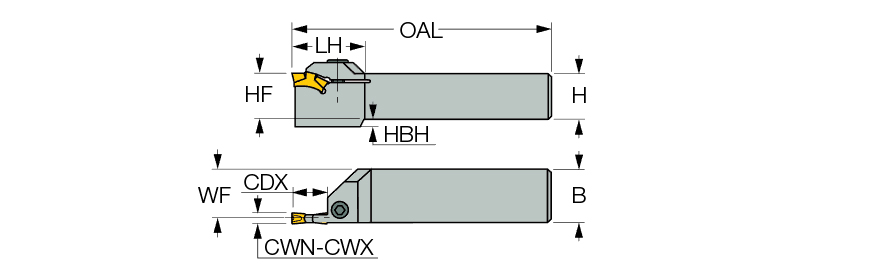

| Cutting Width Minimum (CWN) | 5 mm | Overall Length (OAL) | 150 mm |
| Cutting Width Maximum (CWX) | 5 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | |
| Cutting Depth Maximum (CDX) | 22 mm | Body Material | Steel |
| Shank Height (H) | 32 mm | Tool Type | Turn-Groove Tools |
| Shank Width (B) | 32 mm | Measurement Type | Metric |
| Functional Width (WF) | 29.8 mm | Unit | M |
| Head Length (LH) | 45 mm |
Product Features
| Family Description | Holders for TOP-GRIP utility grooving and turning inserts. | FamilyName | TGDR/L |
| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.0610
Name
Groove/Turn Indexable Holders
FamilyName
TGDR/L
BrandName
Iscar
Related Documentation
Tools for multi-directional machining with support under the arc-shaped insert, for turning, grooving and parting with maximum stability.
