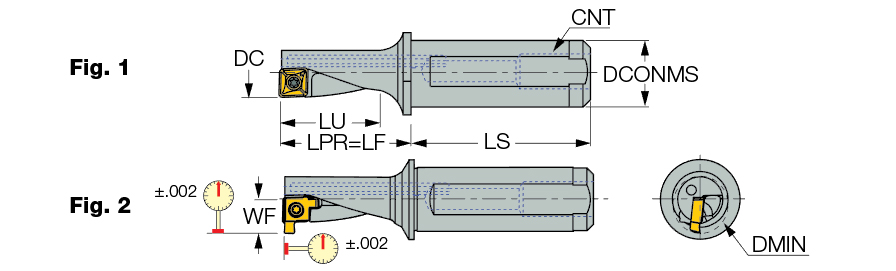

| Cutting Diameter (DC) | 0.551″ | Application | | Drilling Ext Face Int. Turning | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Minimum Bore Diameter (DMIN) | 0.65″ | Body Material | Steel |
| Functional Width (WF) | 0.37″ | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 3.29″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Unit | I |
Product Features

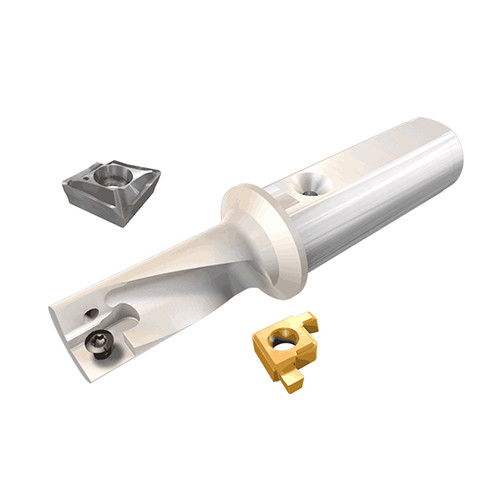

| Family Description | Multifunction drilling, boring, facing, external turning and internal grooving tools | FamilyName | DRG-MF |

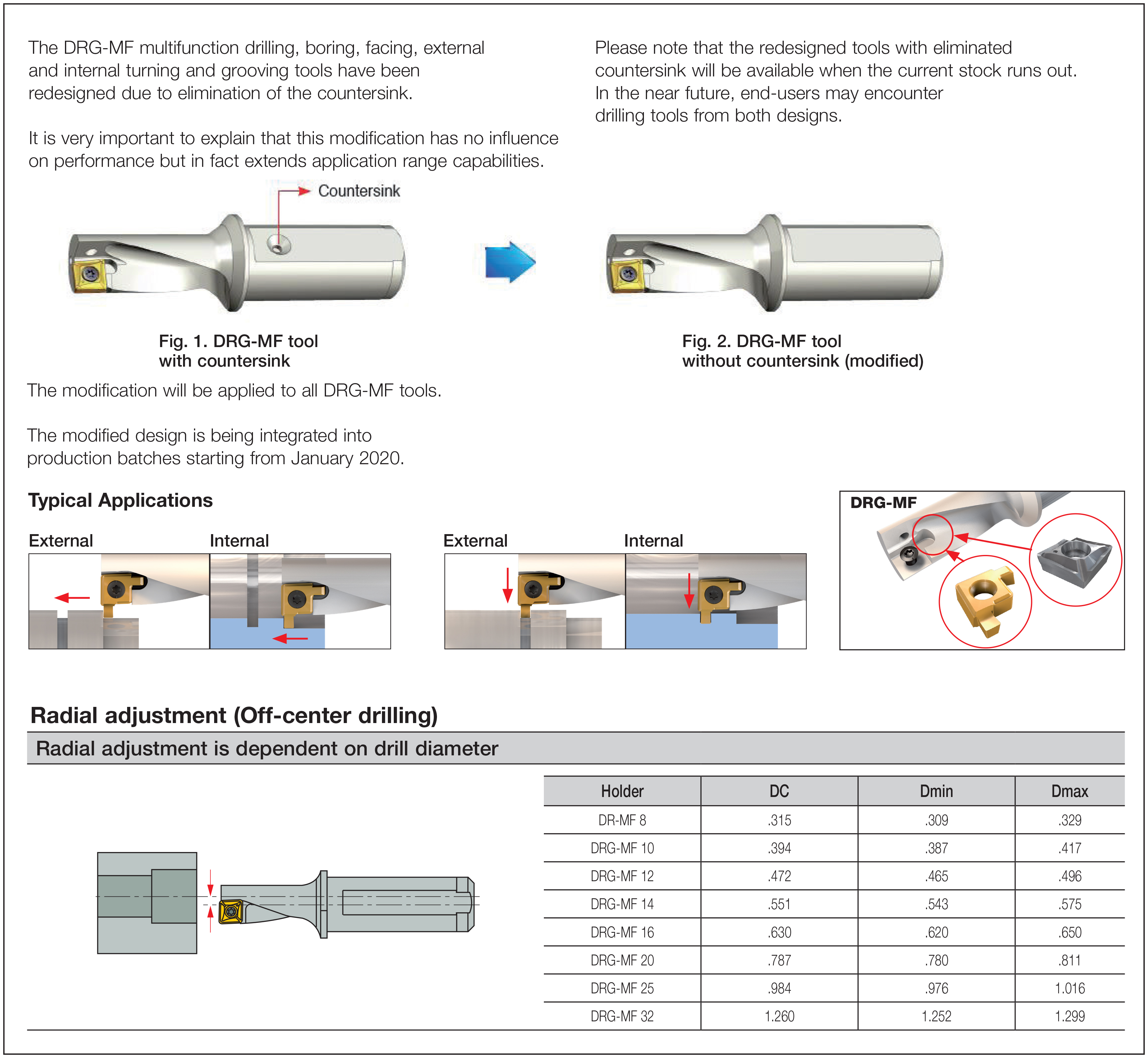

| Remarks | In non-rotating applications, hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis The tools feature internal coolant holes | BrandName | Iscar |
| COO | Korea |
Shipping Info
Name
Groove/Turn Indexable Holders
FamilyName
DRG-MF
BrandName
Iscar
