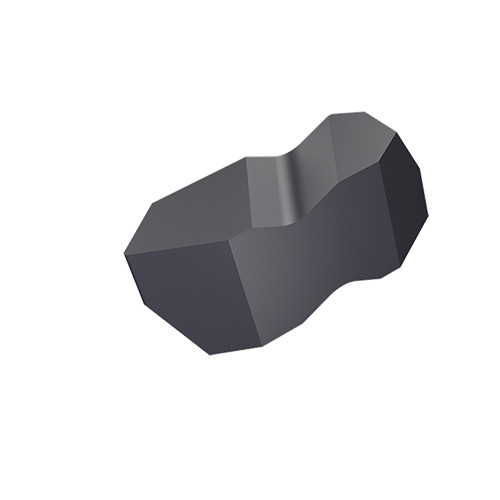

FLT-4L IC908
Double-ended precision flat top threading inserts, for 60° such as ISO and UN general threading applications. Especially suitable for cast iron
Price: Log in For Price

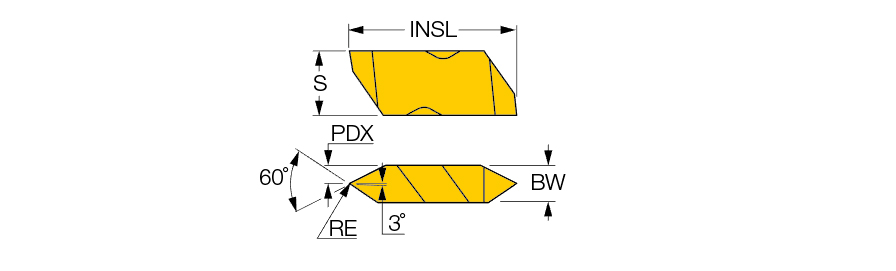

| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 6 mm |
| Corner Radius (RE) | 0.0067″ | Profile Included Angle (PNA) | 60 Degrees |
| Insert Thickness (S) | 0.453″ | Threads per Inch Maximum (TPIX) | 12 |
| Grade | IC908 | Threads per Inch Minimum (TPIN) | 4 |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | | Thread Form Type (THFT) | VP60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Thread Pitch Minimum (TPN) | 2 mm |
Product Features
| Family Description | Double-ended precision flat top threading inserts, for 60° such as ISO and UN general threading applications. Especially suitable for cast iron | FamilyName | 60° PARTIAL PROFILE THREADING FLT |
| Remarks | For 60° V-thread limits, click on More Info DMIN according to related boring bar DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A | BrandName | Iscar |
| COO | USA |
Shipping Info
Name
On-Edge Threading Indexable Inserts
FamilyName
60° PARTIAL PROFILE THREADING FLT
BrandName
Iscar
