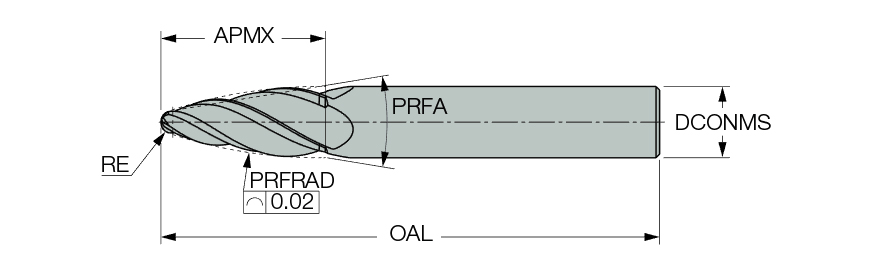

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | AlTiN |
| Application | | Profiling | | Grade | IC902 |
| Cutting Diameter (DC) | 4 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 24.5 mm | Shank Type | Round |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Overall Length (OAL) | 72 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Unit | M |
Product Features

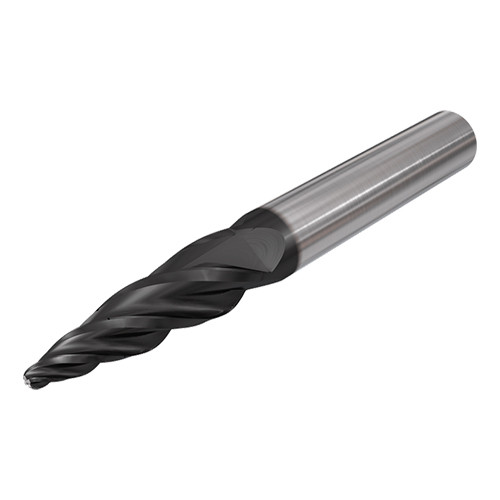

| Family Description | Solid carbide oval-shaped (Barrel) endmills for 3D profiling. For semi-finishing & finishing applications. | BrandName | Iscar |
| COO | Israel | ||
| FamilyName | EOB |
Shipping Info
Weight per item
0.0720
Name
Tapered End Mills
FamilyName
EOB
BrandName
Iscar
