ECI-3 250-375C0VF2 IC608

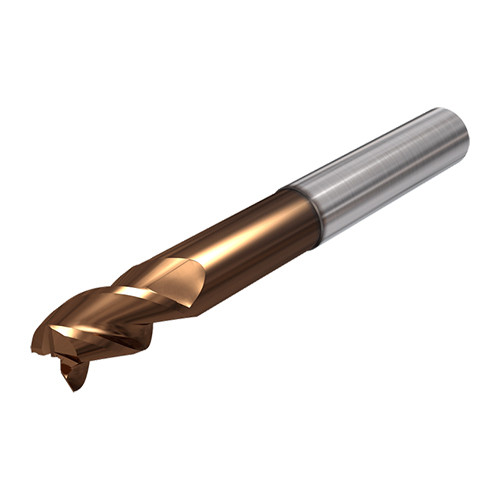

3 flute endmill with and without relieved necks, assorted radii and variable pitch for chatter dampening
Price: Log in For Price

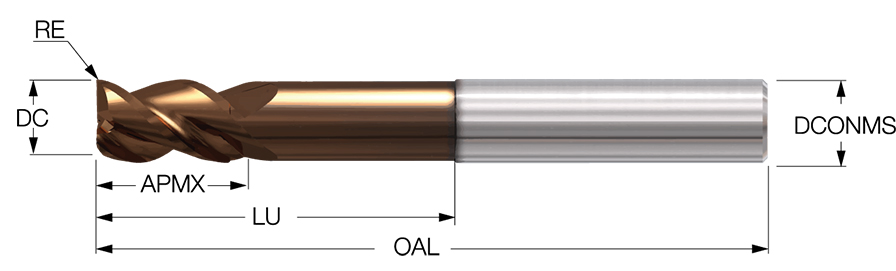

| Cutting Diameter (DC) | 1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Grade | IC608 |
| Depth of Cut Maximum (APMX) | 3/8″ | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 2″ | Maximum Feed per Tooth (fz(max)) | 0.0017 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | AlTiCrSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.25″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 3/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | I |
| Corner Radius (RE) | 0″ |
Product Features
| Family Description | 3 flute endmill with and without relieved necks, assorted radii and variable pitch for chatter dampening | FamilyName | ECI-3-VF |
| Remarks | Each item is also available with a Weldon shank. Substitute a W in p place of the C in the listed designations (example: ECI-4 375-1.0C03VF2.5 = cylindrical type; ECI-4 375-1.0W03VF2.5 = Weldon type) | BrandName | Iscar |
| COO | USA |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
ECI-3-VF
BrandName
Iscar
