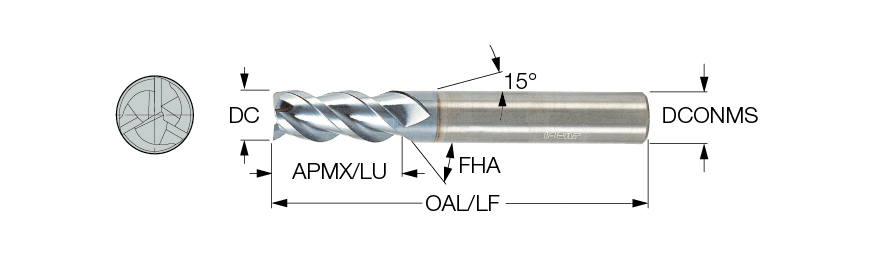

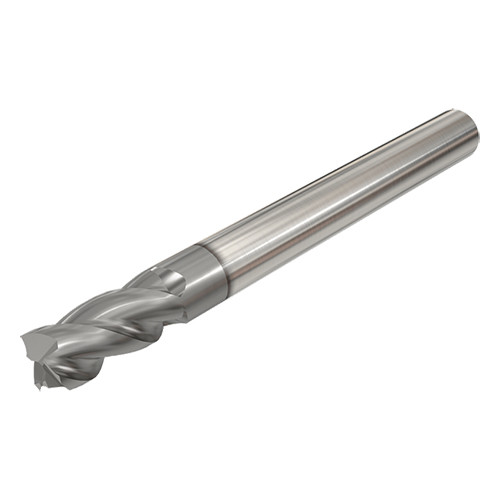

ECI-B-3 125-313-C125 IC900
| Cutting Diameter (DC) | 1/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 0.31″ | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 1-1/2″ | Maximum Feed per Tooth (fz(max)) | 0.002 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 0.125″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 0.31″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | I |
| Corner Radius (RE) | 0″ |
Product Features
| Family Description | 3 flute, 45° helix, medium length, slot / drill solid carbide endmills. | FamilyName | ECI-B-3 |
| Remarks | Excellent for deep slotting and shouldering | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1830
Name
Square & Corner Radius End Mills
FamilyName
ECI-B-3
BrandName
Iscar
