MM TS225C223T150-6T08 IC928

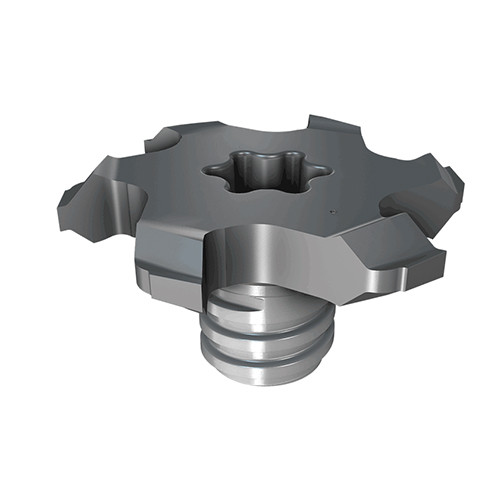

Interchangeable solid carbide groove milling heads for standard circlips conform to DIN 471/472.
Price: Log in For Price

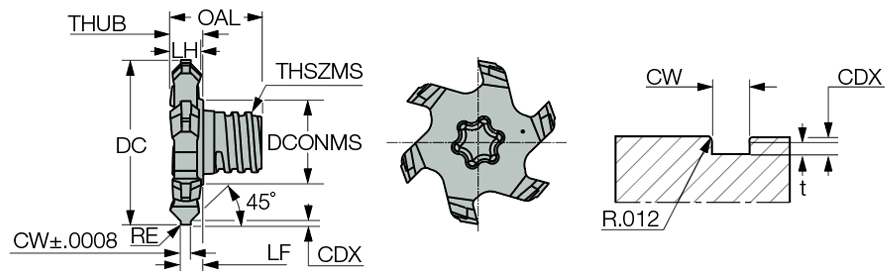

| Application | | Internal Groove Milling | | Functional Length (LF) | 0.138″ |
| Cutting Diameter (DC) | 0.886″ | Overall Length (OAL) | 0.407″ |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC928 |
| Flute Count (NOF) | 6 | Coating | TiAlN |
| Corner Radius (RE) | 0.0039″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.059″ | Body Material | Carbide |
| Cutting Width (CW) | 0.088″ | Unit | I |
| Connection Diameter Machine Side (DCONMS) | 0.461″ |
Product Features
| Family Description | Interchangeable solid carbide groove milling heads for standard circlips conform to DIN 471/472. | FamilyName | MM TS-C |
| Remarks | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0496
Name
Solid End Mill Heads
FamilyName
MM TS-C
BrandName
Iscar
