Chamfering & Bottom Deburring Slanted Shoulder & Chamfer
See all 5 in this Product Family

‎MM GRIT22K-45A-4T8 IC908

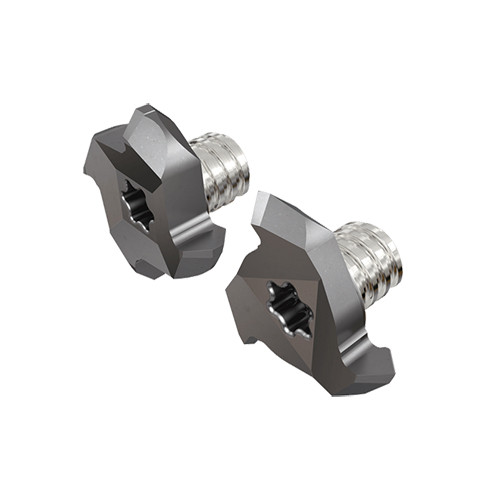

MULTI-MASTER, interchangeable solid carbide small diameter 45° chamfering heads. "P" suffix: positive geometry for soft and gummy materials. "K" suffix: to be used for general steel machining.
MULTIMASTER
Item # ISC3329290
Brand: Iscar
Mfr#: 3329290
Price: Log in For Price
Quantity Available
loading...
Application | Chamfering & Bottom Deburring | Slanted Shoulder & Chamfer | Grade IC908

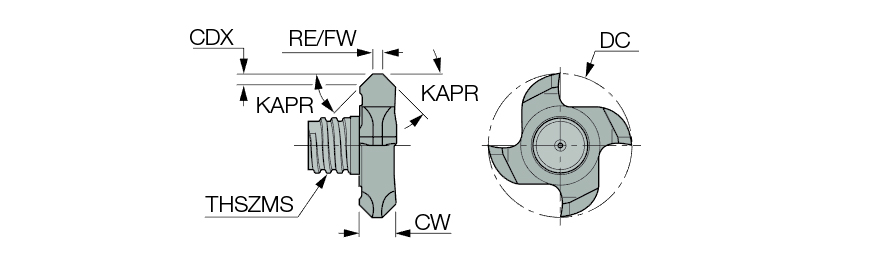

Cutting Diameter (DC) 0.854″ Coating TiAlN
Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Tool Cutting Edge Angle (KAPR) 45 Degrees
Flute Count (NOF) 4 Measurement Type Inch
Connection Thread Nominal Size Machine Side (THSZMS) T08 Cutting Edge Material Carbide
Cutting Depth Maximum (CDX) 0.067″ Body Material Carbide
Cutting Width (CW) 0.219″ Connection Code Machine Side (CCMS) MultiMaster
Overall Length (OAL) 0.535″ Unit I
‎MM GRIT22K-45A-4T8 IC908

Product Features

Family Description MULTI-MASTER, interchangeable solid carbide small diameter 45° chamfering heads. "P" suffix: positive geometry for soft and gummy materials. "K" suffix: to be used for general steel machining. FamilyName MM GRIT-45A
Remarks P-TYPE - Positive geometry for soft and gummy materials. K-Type - For general steel machining. Modification options on request. Do not apply lubricant to the threaded connection. For clamping instructions, click on More Info BrandName Iscar
COO Israel
Warning-Proposition 65- For Californian Users only
WARNING:  This product contains a chemical known to the State of California to cause cancer or Birth defects.  For more information go to www.P65Warnings.ca.gov

Shipping Info

Weight per item
0.0397
