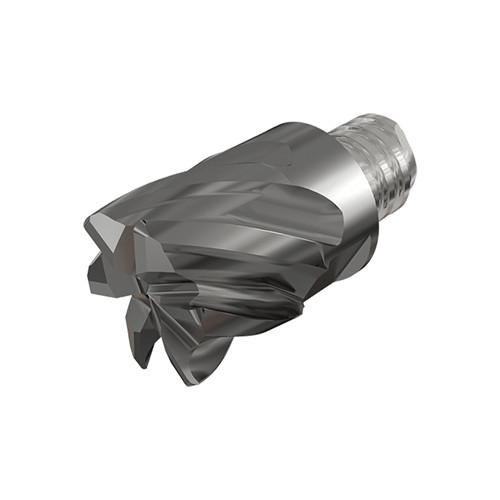

MM ECK.750H62R040-6T12CF IC908
Five and six-flute heads with 35°/38° helix featuring different corner radii. The heads are designed mostly for machining titanium alloys, including hard-to-cut beta- and near beta- alloys, especially by trochoidal milling technique.
Price: Log in For Price
| Application | | Helical Interpolation | Rampdown | Shouldering | | Coating | TiAlN |

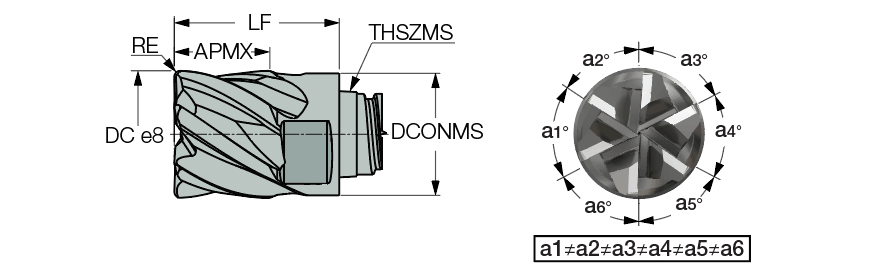

| Cutting Diameter (DC) | 3/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Corner Radius (RE) | 0.04″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 0.62″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 0.726″ | Body Material | Carbide |
| Functional Length (LF) | 1.004″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 37 Degrees | Minimum Feed per Tooth (fz(min)) | 0.0028 ″/tooth |
| Grade | IC908 | Unit | I |
Product Features
| Family Description | Five and six-flute heads with 35°/38° helix featuring different corner radii. The heads are designed mostly for machining titanium alloys, including hard-to-cut beta- and near beta- alloys, especially by trochoidal milling technique. | FamilyName | MM ECK-CF |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2469
Name
Solid End Mill Heads
FamilyName
MM ECK-CF
BrandName
Iscar
