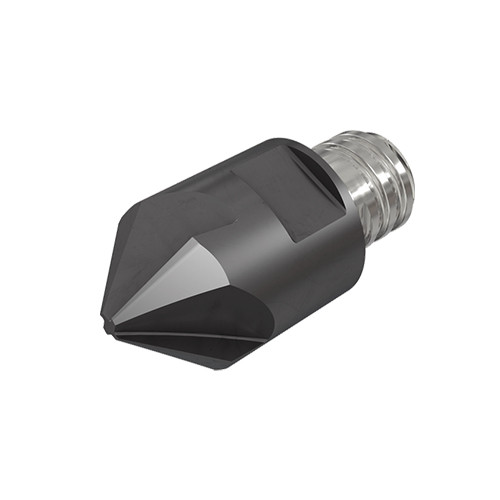

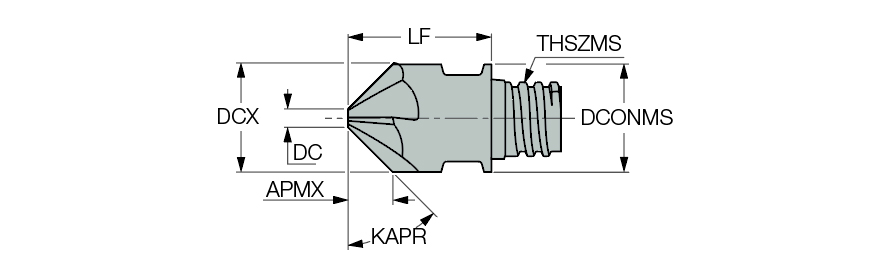

MM ECF45-.375-4T06 IC908
| Application | | Chamfering | Countersinking | Slanted Shoulder & Chamfer | | Grade | IC908 |
| Cutting Diameter (DC) | 0.073″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 3/8″ | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.15″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 0.512″ | Unit | I |
| Overall Length (OAL) | 0.774″ |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide heads for chamfering and countersinking | FamilyName | MM ECF |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0397
Name
Solid End Mill Heads
FamilyName
MM ECF
BrandName
Iscar
