MM EC625E47C24CF-4T10 IC908
MULTI-MASTER interchangeable solid carbide heads with 38° helix and variable pitch for roughing and finishing operations.High material removal rates CHATTERFREE. Used for machining alloyed and stainless steel and exotic materials.
Price: Log in For Price
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coating | TiAlN |

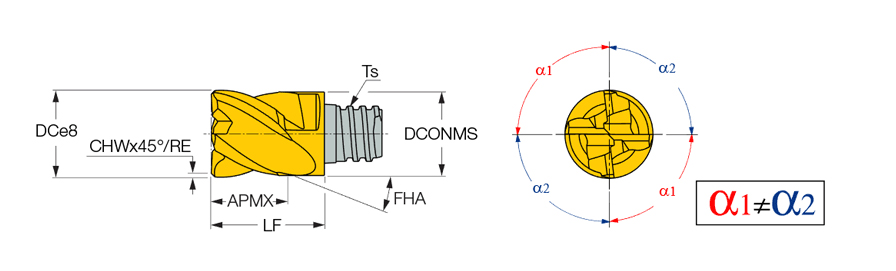

| Cutting Diameter (DC) | 5/8″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Corner Chamfer Width (CHW) | 0.024″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Cutting Diameter Maximum (DCX) | 0″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.602″ | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 0.81″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 1.273″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Grade | IC908 | Unit | I |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide heads with 38° helix and variable pitch for roughing and finishing operations.High material removal rates CHATTERFREE. Used for machining alloyed and stainless steel and exotic materials. | FamilyName | MM EC-CF |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1224
Name
Solid End Mill Heads
FamilyName
MM EC-CF
BrandName
Iscar
