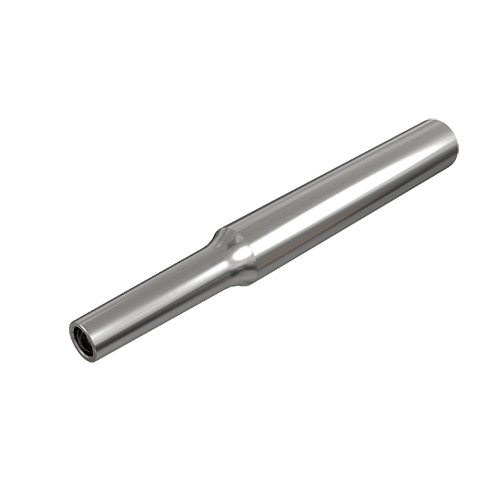

MM S-D-L8.00-C1.00-T12
MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.
Price: Log in For Price

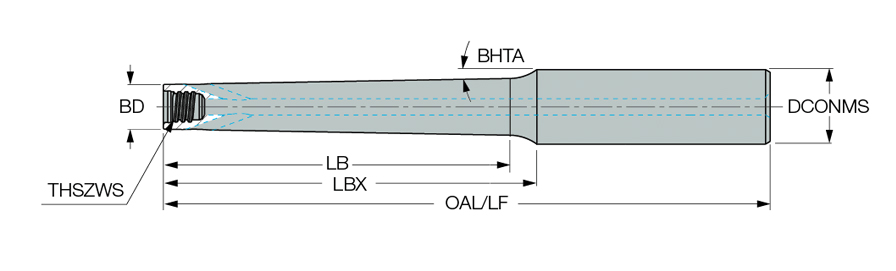

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T12 | Body Length (LB) | 3.4″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 8″ | Rotational Speed Maximum (RPMX) | 15500 Rev/min |
| Body Length Maximum (LBX) | 3-3/4″ | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 0.72″ | Unit | I |
Product Features
| Family Description | MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | FamilyName | MM S-D (89° conical shanks) |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection. Shank Material (Shank m.): S-steel,C-carbide,W-tungsten. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.5146
Name
Solid End Mill Shanks
FamilyName
MM S-D (89° conical shanks)
BrandName
Iscar
