DCN 0945-472-125R-5D

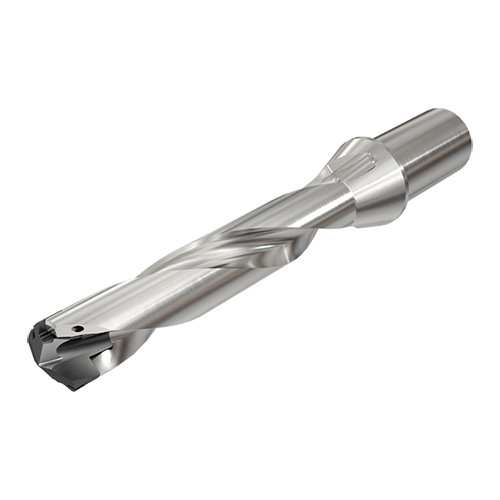

SUMOCHAM 5xD drills with indexable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price

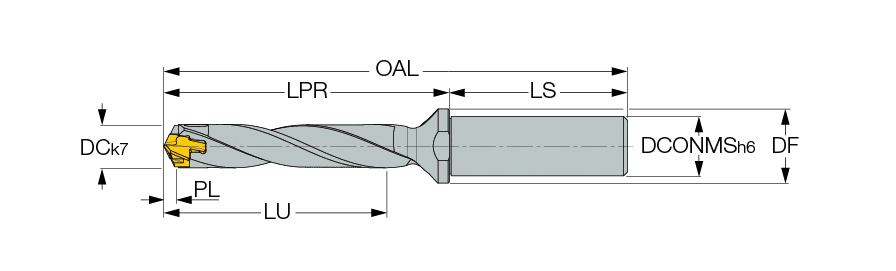

| Cutting Diameter (DC) | 0.945″ | Shank Length (LS) | 2.36″ |
| Usable Length (LU) | 4.867″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 240 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.143″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Insert Seat Size Code (SSC) | 24.0 | Flange Diameter (DF) | 1.65″ |
| Cutting Diameter Minimum (DCN) | 0.945″ | Decimal Equivalent | 0.945″ |
| Cutting Diameter Maximum (DCX) | 0.983″ | Body Diameter Reduced (BDRED) | 1.65″ |
| Protruding Length (LPR) | 6.22″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 6.048″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 8.58″ | Unit | I |
Product Features
| Family Description | SUMOCHAM 5xD drills with indexable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
1.7394
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
