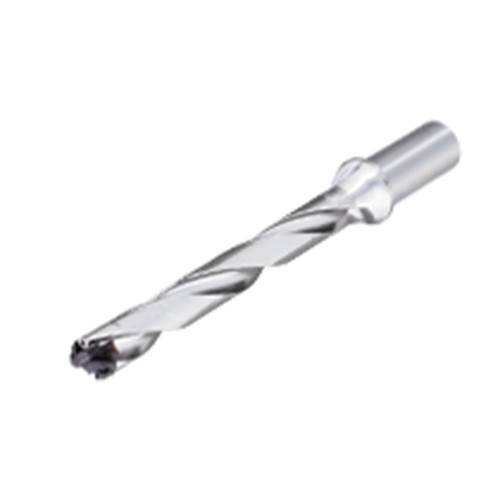

DCN 250-200-32R-8D
SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price

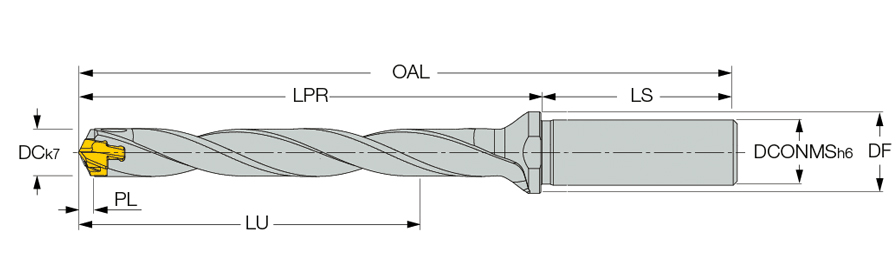

| Cutting Diameter (DC) | 25 mm | Overall Length (OAL) | 299.5 mm |
| Usable Length (LU) | 203.8 mm | Shank Length (LS) | 60 mm |
| Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 250 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Point Length (PL) | 3.8 mm |
| Insert Seat Size Code (SSC) | 25.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 25 mm | Flange Diameter (DF) | 42 mm |
| Cutting Diameter Maximum (DCX) | 25.99 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 239.5 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 234.95 mm | Unit | M |
Product Features
| Family Description | SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.9840
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
