DCNS 0551-275-055B-5D

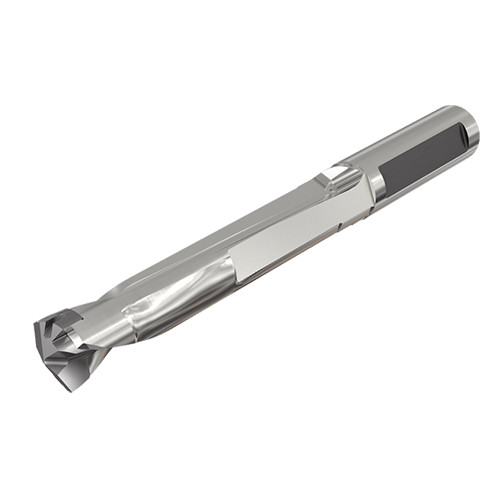

UNISUMODRILL exchangeable head drills without a flange and one flat shank, drilling depth 5xD. Suitable for chamfering holders.
Price: Log in For Price

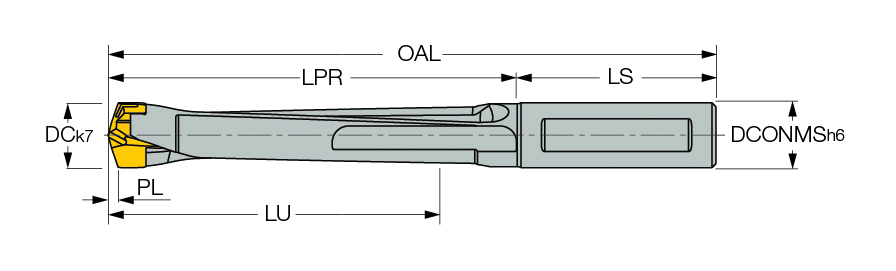

| Cutting Diameter (DC) | 0.551″ | Overall Length (OAL) | 5.165″ |
| Usable Length (LU) | 2.8394″ | Shank Length (LS) | 1.73″ |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Chamfering | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 140 |
| Connection Diameter Machine Side (DCONMS) | 0.551″ | Point Length (PL) | 0.08346″ |
| Insert Seat Size Code (SSC) | 14.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.551″ | Flange Diameter (DF) | 0″ |
| Cutting Diameter Maximum (DCX) | 0.57″ | Decimal Equivalent | 0.551″ |
| Protruding Length (LPR) | 3.43″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 3.333″ | Unit | I |
Product Features
| Family Description | UNISUMODRILL exchangeable head drills without a flange and one flat shank, drilling depth 5xD. Suitable for chamfering holders. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.2866
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
