DCN 0335-169-0394C-5D

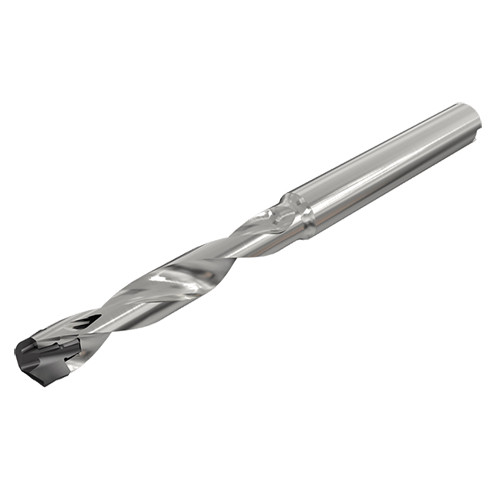

SUMOCHAM 5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price

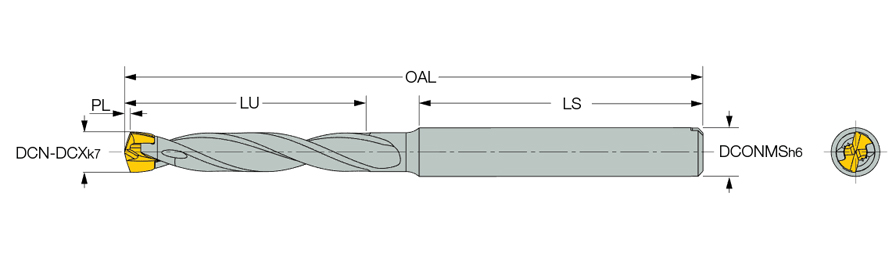

| Cutting Diameter (DC) | 0.335″ | Shank Length (LS) | 1.57″ |
| Usable Length (LU) | 1.724″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 085 |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Point Length (PL) | 0.05078″ |
| Insert Seat Size Code (SSC) | 8.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.335″ | Decimal Equivalent | 0.335″ |
| Cutting Diameter Maximum (DCX) | 0.354″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 2.161″ | Unit | I |
| Overall Length (OAL) | 3.697″ |
Product Features
| Family Description | SUMOCHAM 5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.1235
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
