D3N 0787-118-100A-1.5D

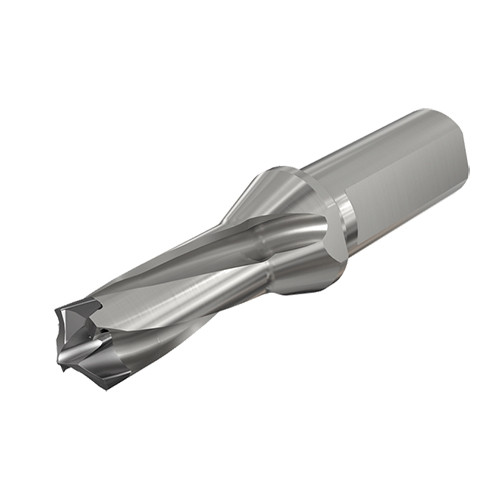

Exchangeable head 3 flute drills with internal coolant holes and one flat shank. Drilling Depth: 1.5xD
Price: Log in For Price

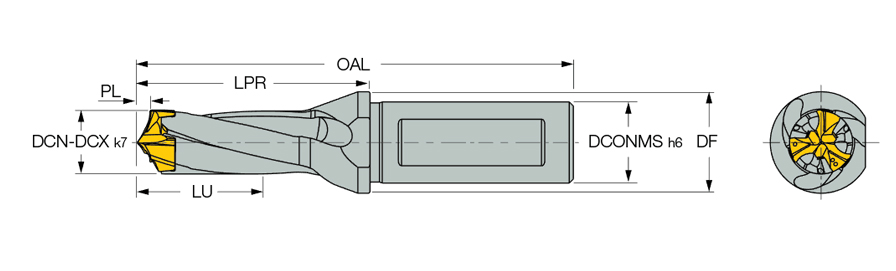

| Cutting Diameter (DC) | 0.787″ | Shank Length (LS) | 2.21″ |
| Usable Length (LU) | 1.351″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Master Insert Identification (MIID) | H3P 0787 |
| Insert Seat Size Code (SSC) | 20 | Point Length (PL) | 0.1701″ |
| Cutting Diameter Minimum (DCN) | 0.787″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.823″ | Flange Diameter (DF) | 1.26″ |
| Protruding Length (LPR) | 2.8″ | Decimal Equivalent | 0.787″ |
| Overall Length (OAL) | 5.01″ | Unit | I |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and one flat shank. Drilling Depth: 1.5xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.8488
