D3N 0630-504-075A-8D

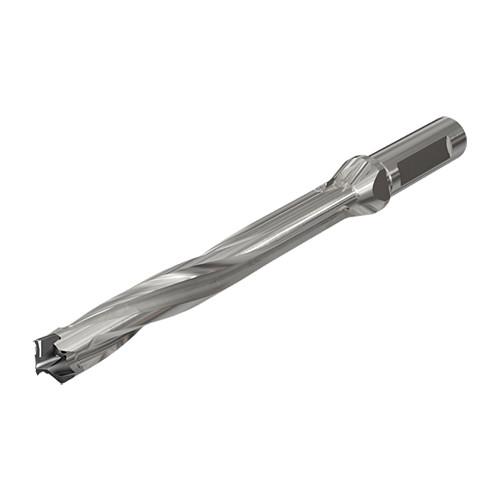

Exchangeable head 3 flute drills with coolant holes and one flat shank. Drilling Depth 8xD
Price: Log in For Price

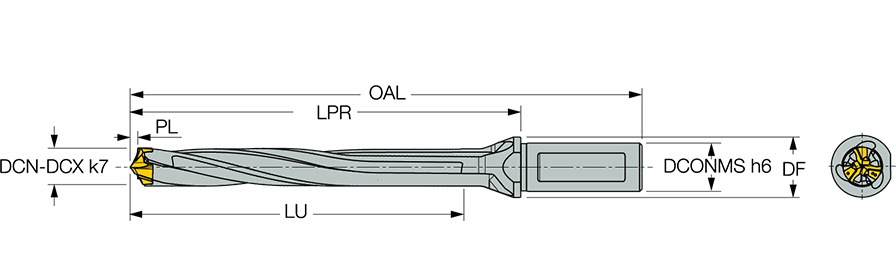

| Cutting Diameter (DC) | 0.63″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 5.175″ | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 160IQ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Point Length (PL) | 0.135″ |
| Insert Seat Size Code (SSC) | 16 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.63″ | Flange Diameter (DF) | 0.984″ |
| Cutting Diameter Maximum (DCX) | 0.665″ | Decimal Equivalent | 0.63″ |
| Protruding Length (LPR) | 6.35″ | Unit | I |
| Overall Length (OAL) | 8.317″ |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank. Drilling Depth 8xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.6768
