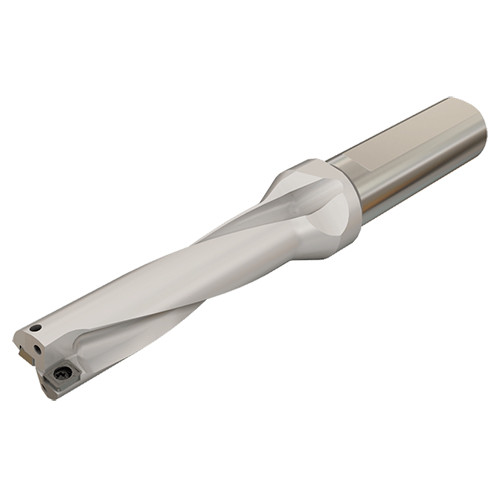

DR041-164-40-12-4D-N
DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.
Price: Log in For Price

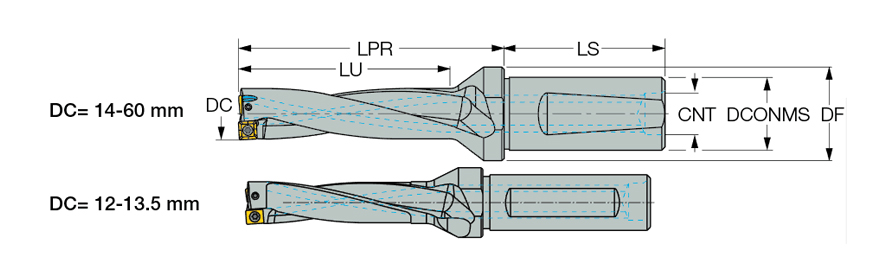

| Cutting Diameter (DC) | 41 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 164 mm | Cutting Diameter Maximum (DCX) | 43.5 mm |
| Application | | Drilling | | Flange Diameter (DF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 120408-DT |
| Protruding Length (LPR) | 200 mm | Body Material | Steel |
| Shank Length (LS) | 68 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 198.77 mm | Unit | M |
| Overall Length (OAL) | 268 mm |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD. | COO | Israel |
| Remarks | Hole tolerance D+0.35/-0.05 in average conditions applied. It can be higher or lower according to machine and tooling conditions |
Shipping Info
Weight per item
1.8310
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
