DR240-120-25-07-5D-N

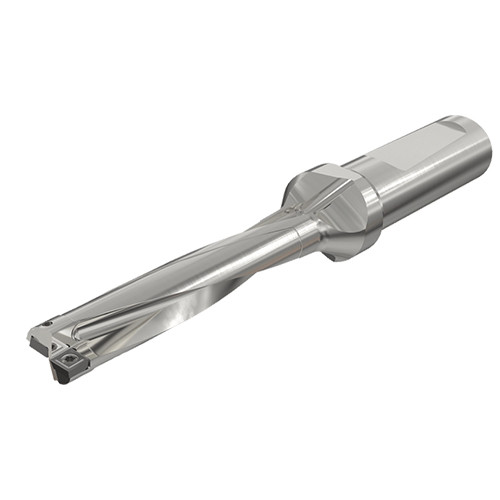

DR-TWIST indexable square insert drills with coolant holes. Drilling depth 5xD.
Price: Log in For Price

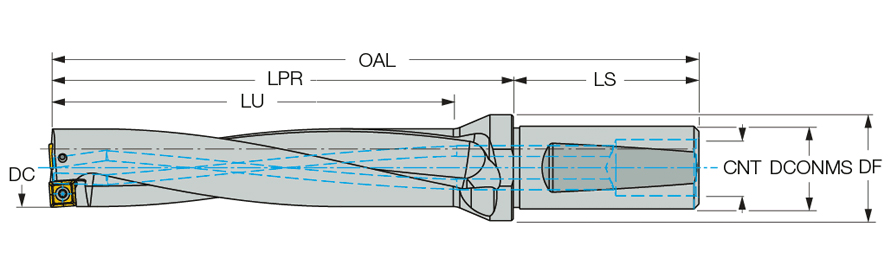

| Cutting Diameter (DC) | 24 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 120 mm | Cutting Diameter Maximum (DCX) | 25.5 mm |
| Application | | Drilling | | Flange Diameter (DF) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 070305-DT |
| Protruding Length (LPR) | 140 mm | Body Material | Steel |
| Shank Length (LS) | 56 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 139.28 mm | Unit | M |
| Overall Length (OAL) | 196 mm |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 5xD. | COO | Israel |
| Remarks | Hole tolerance D+0.35/-0.05 in average conditions applied. It can be higher or lower according to machine and tooling conditions |
Shipping Info
Weight per item
0.5250
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
