DR0709-1418-100-06-2D-N
DR-TWIST indexable square insert drills with coolant holes. Drilling depth 2xD.
Price: Log in For Price

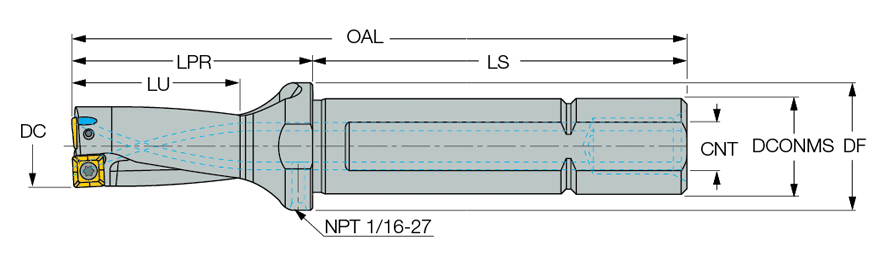

| Cutting Diameter (DC) | 0.709″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.42″ | Cutting Diameter Maximum (DCX) | 0.799″ |
| Application | | Drilling | | Flange Diameter (DF) | 1.26″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 06 |
| Protruding Length (LPR) | 2.28″ | Body Material | Steel |
| Shank Length (LS) | 3″ | Decimal Equivalent | 0.709″ |
| Functional Length (LF) | 2.259″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 5.28″ | Unit | I |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 2xD. | COO | Israel |
| Remarks | Hole tolerance D+.006/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
Weight per item
0.9612
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
