GD-DH 16.00-10D-M25-08-N

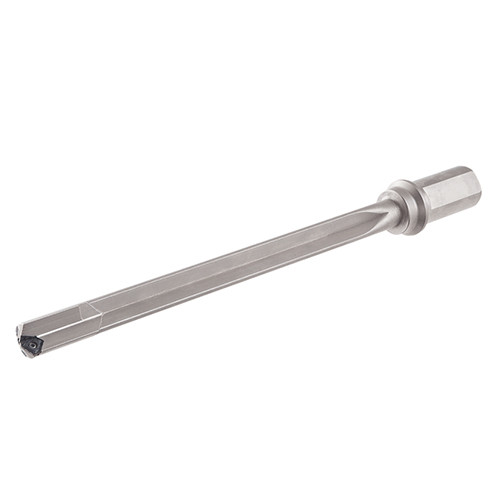

Gundrills carrying the TOGT triangular inserts, with 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. The drills are available in 10, 15 and 25 drilling length to diameter ratios.
Price: Log in For Price

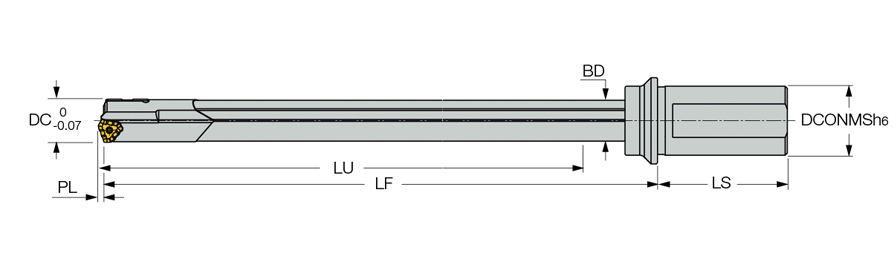

| Cutting Diameter (DC) | 16 mm | Overall Length (OAL) | 267.2 mm |
| Usable Length (LU) | 172.2 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Gundrills | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | TOGT 08.. |
| Tool Type | Deep Hole / Gun Drill | Body Material | Steel |
| Shank Length (LS) | 56 mm | Unit | M |
| Functional Length (LF) | 209 mm |
Product Features
| Family Description | Gundrills carrying the TOGT triangular inserts, with 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. The drills are available in 10, 15 and 25 drilling length to diameter ratios. | COO | Japan |
| Remarks | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 2400 mm length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Shipping Info
Weight per item
0.4510
Related Documentation
Possible risks: To prevent injuries, do NOT operate any deep hole drill, which uses a pre-drilled guide hole, at full speed before entering the guide hole. The deep hole drill may fracture due to vibration and cause injuries.
